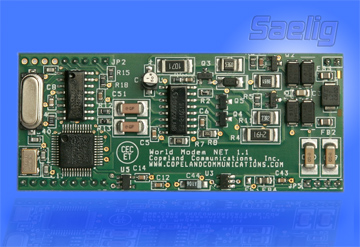

World Modem NET 3.3V 56K Serial (CC-56K2N-CSR)

Limited quantities available - please call

The CC-xxxK2N World Modem™ NET is a family of compact, integrated 2400 to 56K baud Internet-capable modems that feature SocketModem™ compatibility. The World Modem™ NET provides an Internet communication interface that shifts the burden and complexity of Internet communications away from the embedded application and simplifies it via an extended AT command set.The modem features a transformer-less DAA that meets global telephone system requirements, a flexible DSP data pump, and no electromechanical components.The modem supports serial host communications via a flexible internal UART. The modem conforms to the industry-standard SocketModem™ mechanical and interface specifications. Future models of the World Modem™ NET will support user I/O pins, SPI and I2C interfaces.

Features

• Internet Engine supporting:
• Up to 10 simultaneous TCP and UDP sockets and up to 2 server sockets
• Transmit text Email messages (option)
• Manipulate files and directories via FTP (option)
• SerialNET mode routing local serial data to and from the Internet (option)
• World Compatible DAA
• 3.3 Volt model (3.3V interface with 5 volt tolerant IO)
  5 Volt-only version available - call for details
• Designed to withstand 5 kV longitudinal surges
• Serial controller interface
• 300 to 56K baud
• Parallel phone and line in use detection
• Overcurrent protection
• Commercial temperature
• Global Caller ID
• Firmware upgradeable
• Call progress support
• Low profile
• Operating current (TBD)
• Overcurrent detection
• Full US and European certifications, including CE
• Conformal coating available
• Small Footprint - 1.05" X 2.54"

Documentation

World Modem NET Data Sheet

Programmer's Guide

World Modem Evaluation Kit User's Guide

Manufacturer Part Number:  CC-56K2N-CSR
