Cleverscope CS1031 - Switchable x100, x200, x500 and x1000 50 MHz Differential Probe

Manufacturer: Cleverscope

Price: $478.00

Untitled Document

CS1031 Differential Probe

The CS1031 Differential probe is a switchable x100, x200, x500 and x1000 50 MHz differential probe for making isolated measurements between any two points in a system.

Specifications:

Item	Position x 100	Position x 200	Position x 500	Position x 1000

Attenuation - 1MÙ	100:1	200:1	500:1	1000:1
Attenuation - 50Ù	200:1	400:1	1000:1	2000:1
Bandwidth	DC to 25 MHz	DC to 50 MHz	DC to 50 MHz	DC to 50 MHz
Input Impedance	4 MÙ 1.2 pF between inputs
	2 MÙ 2.3 pF between inputs and ground
Max Op Voltage	±650V (DC +peak AC)	±1300V (DC +peak AC)	±3250V (DC +peak AC)	±6500V (DC +peak AC)
Max V to Ground	6500 V (DC +peak AC).
Output Impedance	50Ù
Noise	<2 mV rms into 50Ù load
CMRR	50/60Hz:	>10,000:1
	100Hz:	>1,000:1
	1MHz:	>300:1
Safety	Meets IEC1010 Cat 1. EN61010, UL3111
Power	One internal 9V PP3 battery or external 6-9V DC.
Size	200 x 55 x 30 mm (plastic case)
Weight	245 gm (plastic case)
Cable Length	1 m

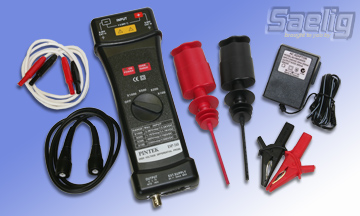

Accessories that are included with the differential probe are:Carry Bag, Instruction Manual, Large Crocodile Clips, Long Grabber Clips, Test leads, BNC-BNC cable, Power supply
