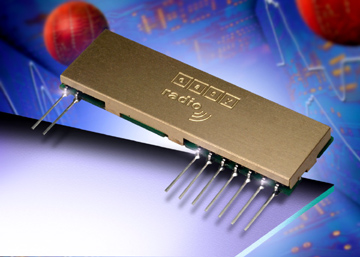

ER900TRS easyRadio 900Mhz transmitter/receiver

• Transceiver for EU (868-870MHz) or USA (902-920MHz) markets
• User programmable frequency
• User programmable power output
• User programmable data rate
• Frequency can be set to either 869.85MHz or frequencies in the 902-920MHz bands by simple software commands
• Power output up to 10mW. NOTE restrictions in USA to 1mW and 5mW EU
• Data rate up to 76.8K bps
• Embedded "easy-Radio" software means NO protocol software to write
• Handles all encoding/decoding functions
• Fastest time to market
• Typical range up to 150m
• Supply volts 3.6v; Power consumption Tx - 23mA; Rx - 17mA
• Dimensions 37.5 x 14 x 4.5mms
• Sensitivity typ. -105dBm
• Version available at 433-4MHz; ER400TRS-02
