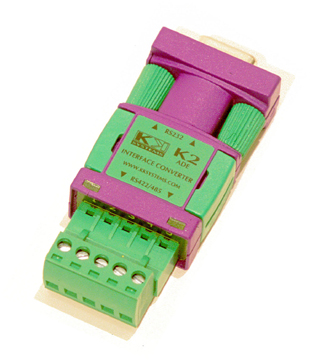

K2-ADE-TB RS232/422/485 9pinF-termblock with Autodriver Enable

Features

• Plugs directly into a IBM PC 9-way serial port
• RS232 port-powered in most applications
• Automatic Driver Enable (ADE) version - K2-ADE
• 400 watt surge protection in ADE version
• Very low supply current
• RS232 output swings above and below ground
• Sony professional compatible (also known as SMPTE) RS422 pinout
• Very low cost


The K2 is a non-isolated RS232-RS422/485 converter for up to 115200 baud.
For RS485 use, RTS Control may be required from the RS232 device.
The K2-ADE does not need RTS Control.

K2

K2-ADE

(Configurations Switches "typical")

K2-ADE-TB
