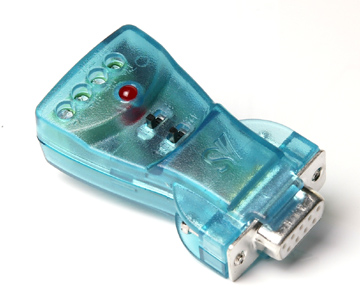

CS-428/9 RS232 to RS422/485 Converter

Manufacturer: SystemBase

This product has been replaced by CS-428/9 (AT).

CS-428/9 AT is an interface converter that converts RS232 signal into RS422 or RS485 signal. Since CS-428/9 AT is designed to get power from a PC or other equipment for its operation, it does not require an additional power connection or cabling work.

Its automated opening and closing of input and output terminals eliminate the hassle of toggling into RTS signals required when using existing devices.

Equipped with high-performance surge protector, CS-428/9 AT fends off various electrical shocks delivered through signal lines while using a product. Furthermore, LEDs e.g. Power, Tx and Rx enable a user to check the status of power supply to a converter and conduct transmission/reception tests.

Comm. mode	Asynchronous serial communication
Comm. speed	Up to 115.2Kbps
Comm. distance	Up to 1.2Km
Connector	RS422/485 port (Terminal block for cable connection), RS232 port (DB-9 Female)
LED	Power, Tx, Rx (In case of CS428/9 AT only)
Protective device	Surge protector
Power	DC 7V-12V power adapter, Basically operates with no power
Dimension	75 x 37 x 19mm (W x D x H)
Weight	33g

Serial

Mode
Asynchronous serial communication

Speed
Up to 921.6Kbps

Distance

Max. 1.2Km
115.2Kbps,24AWG twisted pair cable

Connector
RS232 : DB9 Female (Male : optional)
RS422/485 : Terminal Block 5P

Signals
TXD, RXD, RTS, CTS, GND for RS232

Protection

3KV Isolation among sides
15KV Surge Protection for all signals

Data Bits
5, 6, 7, 8

Stop Bits
1, 1.5, 2

Parity
None, Even, Odd, Space, Mark

RS422 mode
Point-to-Point, Multi-Drop

RS485 mode

Echo, Non-Echo

RTS Control
CS-428/9AT : Auto Toggling
CS-428/9 : Manual RTS control.

Switch
CS-428/9 : RS422/485 mode switch
1:1 / Multi-Drop switch
CS-428/9AT : RS422/485 mode switch
