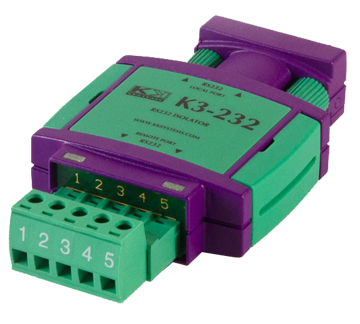

K3-232-TB RS232 Isolator 9pinF-termblock

Features

• Isolation 100% tested at >1000V AC
• Plugs directly into IBM PC 9-way serial port
• Very low cost
• No separate power supply required in most applications
• Baud rate independent 0-38 kbaud
• Latest surface-mount technology
• Very low power CMOS

 Do not confuse these isolated models with imitations which claim to be self-powered but which in fact require power to be supplied to both sides of the converter, or which require about 40mA - far too much for any PC interface to supply

The K3-232 is an isolated RS232-RS232 isolator for up to 38400 baud. It is intended for full-duplex point to point communication.
