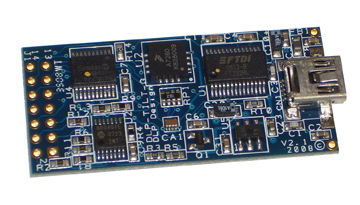

DLP-TILT-G USB-Based TILT Sensor

This product is now lead-free.

Features:
• Microcontroller Preprogrammed with Data-Acquisition Functions
• 2-Axis, 2g Accelerometer
• Single-Byte Access to All Firmware Features
• Continuously Streaming Analog Sample Rates from 100 to 6K Samples Per Second
• 4th-Generation USB Interface Silicon from FTDI (FT232R with internal ceramic resonator, internal setup EEPROM, and clock output for microcontroller)
• Virtual COM Port Drivers for Easy Programming Interface

Applications:
• 2-Axis Tilt Sensor
• Vibration Analysis (2-Axis, up to 3000Hz)
• Two-Button Mouse (Pointing Device Alternative)
• FFT-Based AC Analysis to 3KHz with Provided Software
• +/-5V Analog In (Single Channel)
• Data Acquisition: 0-5V Analog In, Digital I/O
• Robotic/Motion Sensing and Control
