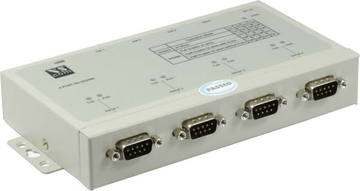

USB-4COMi-SI-M USB to 4 x RS422/485 Serial Ports

This USB Industrial I/O Adapter is designed to make industrial communication port expansion quick and simple. Connecting to a USB port on your computer or USB hub, this USB Industrial I/O Adapter instantly adds and industrial multi-electrical interface serial communication port to your system. By taking advantage of the USB bus, this USB Serial Adapter makes it easier than ever to add 4 RS422/485 serial ports and serial devices to your system with easy plug-and-play and hot plug features.

Plugging the USB Industrial I/O Adapter into the USB port, the adapter is automatically detected and installed. There is no IRQ & COM port conflicts, since the port doesn't require any additional IRQ, DMA or memory on the system. The RS-422/485 port functions as a native Windows COM port, and it is compatible with Windows serial communication applications. Each port is individually configurable via DIP switches on the outside of the USB-4COMi-SI box.

This USB to Industrial I/O Adapter provides instant connectivity to RS422/485 communication devices for factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC to PC long distance communications, ATMs and serial communications in harsh environments. This USB to Serial Adapter is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-422/485 communication ports.

Specifications & Features:

• Adds 4 high speed RS422/485 serial port via USB connection
• 384 byte receive buffer.
• 128 byte transmit buffer for high speed data throughput.
• Requires no IRQ, DMA or I/O port.
• Data rate speed range: 300 bps to 921,600 bps
• Serial Connector: DB-9 male connector
• Auto transmit buffer control for 2-wire RS-485 half-duplex operation.
• RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-.
• RS-485 data signals: Rx-, Tx+, Rx+, Rx- (r wire), and data-, data+ (2 wire).
• LEDs which show transmitting and receiving of data.
• Easily mountable
• Metal Housing
• Dimensions of 167× 99×29 mm³ (W×L×H) or 189×102×30 mm³ with DB9 connectors and ears.
• Adapter works under Windows 98, 98SE, ME, 2000, XP, 2003, Linux 2.4 and Linux 2.6.9 and later, FreeBSD 6.0 & MAC OSX. (Drivers for Windows are included, the Linux 2.4 driver can be downloaded, and Linux 2.6.9 and later, FreeBSD 6.0 and MAC OSX directly support the adapter without drivers. To download the latest versions of drivers, or to view documentation on how to install the adapter under MAC OSX, please visit the following page:

  http://www.ftdichip.com/Drivers/FT2232CDrivers.htm

  Please refer to the section under the heading of 'VCP drivers'.

This adapter supplies Optical Isolation & Surge Protection.

Each RS-422/485 port is individually optically isolated with 2000 volt DC optical isolation. The optical protects your PC or notebook from spikes and surges on the RS-422/485 network, by converting the electrical pulse into an optical signal and then changing it back into an electrical pulse. Your computer is well protected, since the surges and spikes cannot cross the optical link. Each RS-422/485 port is individually protected by surge protector to withstand electrostatic discharge and power surges up to 25KV ESD. Surge suppression on all signals prevent damages caused by lightning and high voltage.
