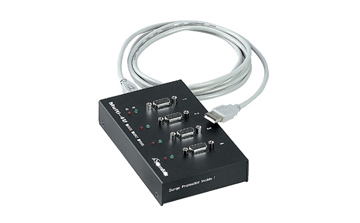

USB-4COM-S USB to 4 x RS232 Serial Ports

Manufacturer: SystemBase

Price: $105.00

Multi-4/USB Series enables the connection of up to 4 asynchronous serial devices such as terminals, modems, printers, and scanners to make a PC an economical but a powerful multi-user and multi-device system. TXD and RXD LEDs are included in the product for the displays of data transmission. Transmission speed rises up to 921.6Kbps per port, with the help of USB 2.0 specifications. Another remarkable feature is in its specialized design which converts the RI pin (pin #9) of DB-9 connector into a power of external power adapter, providing power to the external devices as needed. This feature can be fully exploited when connecting small peripherals such as cash registers, barcode readers, or receipt printers to systems like PC POS.

Features

4 serial ports per board
RS232 Serial Interface
Serial communication speed of up to 921.6Kbps
USB 2.0 full speed (12M bits/second) compatible
Operates by bus power(No requires external power)
RI signal line power supply (External power adapter power supplied)
Easy maintenance with TX/RX LED display
Windows 2003/XP/2000/98/ME, Linux, Mac OS X, Mac OS 9, Windows CE.NET (Version 4.2 and greater) driver support

Specifications

- Bus Interface

Bus Spec.

USB version 1.1 and 2.0 compliant

- Serial

Interface	RS232
No. of Ports	Multi-4U: 4
Speed	1200 bps to 921.6 Kbps
Signals	TX, RX, DTR, DSR, CTS, RTS, DCD, RI
Protection	15KV ESD Protection for all signals
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
