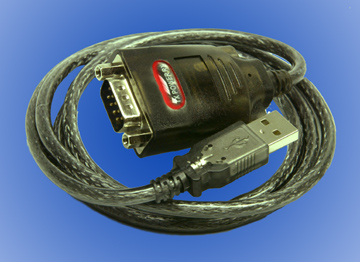

USB-422 USB to RS422 Converter Cable
Manufacturer: SystemBase
Price: $39.95
|
Multi-1, USB Series enables the
connection of 1 asynchronous serial
devices such as terminals, modems,
printers, and scanners to make a PC
an economical but a powerful
multi-user and multi-device system.
TXD and RXD LEDs are included for
the displays of data transmission.
Transmission speed rises up to
921.6Kbps per port, with the help of
USB 1.1 specifications. |
Multi-1, USB Series is composed of
RS422 interface model. It
supports a communication speed of up
to 921.6Kbps and guarantees high
performance.
With auto-toggling signal for RS422
provided on-chip control, it makes
the line drivers control signals of
input/output precise and realizes a
stable communication. All the 422
transceivers have 15KV ESD
protection, and therefore protects
the product from electrical shock. |
- Add 1 serial port to
your PC easily!
- RS422 Serial Interfaces
- Serial communication speed
of up to 921.6Kbps
- USB Version 1.1 compatible
- Operates by bus power
(Requires no external power)
- RI signal line power supply
- On-chip control for
RS422/485 auto toggling
- Built in 15KV ESD
- Easy maintenance with TX/RX
LED display
- Windows 2003/XP/2000/98/ME,
Linux Kernel 2.4 or greater, Mac
OS X, Mac OS 9, Mac OS 8.6
driver support
|
|
|
Bus
Spec.
|
USB version 1.1
compliant |
|
Interface
|
RS422 |
|
No.
of Ports
|
Multi-1U: 1 |
|
Speed
|
1200 bps to
921.6 Kbps |
|
Signals
|
TX, RX, DTR, DSR,
CTS, RTS, DCD,
RI |
|
Protection
|
15KV ESD
Protection for
all signals |
|
Data
Bits
|
5, 6, 7, 8 |
|
Stop
Bits
|
1, 1.5, 2 |
|
Parity
|
None, Even, Odd,
Space, Mark |
|
Flow
Control
|
RTS/CTS, XON/XOFF |
|
O/S
|
Windows
98/ME/2000/XP/2003,
Linux Kernel 2.4
or greater, MAC
OS X, Mac OS 9,
Mac OS 8.6 |
|
|
PCI controller
|
SystemBase SB4002A |
|
UART
|
SystemBase SB16C1054
with 256-byte |
|
Dimensions
|
Multi-1U/RS232 : 35
19 54 mm
Multi-1U/RS422 : 35
19 54 mm
Multi-1U/RS485 : 35
19 54 mm
Multi-2U/RS232 : 75
26 74 mm
Multi-2U/RS422 : 75
26 74 mm
Multi-2U/RS485 : 75
26 74 mm |
|
Weight
|
Multi-1U/RS232 :
74.2 g
Multi-1U/RS422 :
74.2 g
Multi-1U/RS485 :
74.2 g
Multi-2U/RS232 :
84.7 g
Multi-2U/RS422 :
84.7 g
Multi-2U/RS485 :
84.7 g |
|
Operating
Temp.
|
0 ~ 50°C |
|
Storage
Temp.
|
-20 ~ 80°C |
|
Humidity
|
5 ~ 95%
Non-Condensing |
|
|
