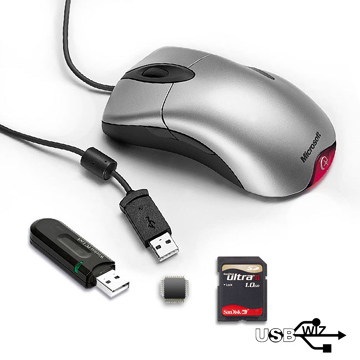

USBwiz Chipset

Manufacturer: GHI Electronics

Price: $29.50

Thanks to USBwiz™, now you can access USB keyboard, mouse, joystick or even printer from your system very easily. USBwiz™ also includes FAT file system so you can read/write files on USB thumb drives and SD cards. Communication with USBwiz is done over UART, SPI or I2C with a simple command set.

Key Features

FAT32, FAT16 and FAT12 support.
Multi Media Card (MMC) and Secure Digital (SD) memory cards.
USB host stack and raw access to USB devices.
HID USB class support.
Printer USB class support.
Mass storage USB class support. Connect external hard drives or thumb drives.
CDC class. Send SMS messages and data right from your cell phone.
Easily used with any microcontroller including PIC and AVR.
Runs with simple robust protocol on UART, I2C or SPI.
UART runs as high as 921.6 K-baud, SPI clock is up to 7Mhz and I2C clock up to 400Khz.
Field upgradeable firmware.
Firmware can be updated from a file on the SD card or a thumb drive.
Small LQFP 64 package.
40 to 50 mA, power consumption with low power mode.
Single supply 3.3V.
5V tolerant I/O pins.
-40 degrees C to +85 degrees C temperature operating range.
Lead free.

Applications

Data Logger.
Picture viewer.
USB thumb-drive MP3 player.
Digital camera.
Automated machine.
Keyboard/Mouse/Joystick interface.
RS232 to USB-printer server.

Downloads

	Latest Firmware See version info below
	ISP1160 Data Sheet
	LQFP 64 Package Outline
	Manual

USBwiz OEM Board

	Brochure
	Dimensions
	Schematics

(GHI-00005)
