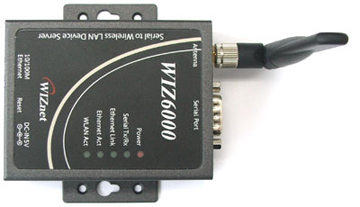

WIZ6000 Serial-WiFi Server
Manufacturer: Wiznet
Price: $119.00
Serial to WiFi / Ethernet to WiFi WIZ6000
- 1 RS 232, RJ-45 and standard 802.11b/g wireless interface
- Operates as AP, Station and Gateway
- 54Mbps Data Rate & Max 20Mbps Effective Data Transmission
- Full-Featured Network Protocol Stack
- Built-In Web server and Wizard Program for configuration
- CE, FCC, and KCC Certified
WIZ6000 User Manual
Specifications
|
Wireless Specification
|
|
|
IEEE802.11b/g
|
|
Frequency Range
|
2.412~2.484GHz
|
|
Output Power
(Tolerance(+/-1dBm)
|
802.11b 15dBm@11Mbps (Max 10mW / 1MHz)
802.11g 13.5dBm@6~54Mbps (Max 10mW / 1MHz)
|
|
Receive Sensitivity
|
802.11b -65dBm@11Mbps
802.11g -76dBm@54Mbps
|
|
Data Rates
|
54Mbps-1Mbps
|
|
Modulation Type
|
11g OFDM(64QAM, 16QAM, QPSK, BPSK)
11b DSS(CCK, DQPSK, DBPSK)
|
Software Specification
|
|
Operation Mode
|
Access Point, Clinet, Gateway, Serial to Wireless LAN
|
|
Protocol
|
ARP, UDP, TCP, Telnet, ICMP, IGMP DHCP, PPPoE, BOOTP, HTTP, TFTP
|
|
Security
|
WEP 64/128big
WPA/WPA2 PSK/AES/TKIP
802.1x(Radius)
SSL
|
|
Management
|
HTTP, Telnet, Serial, UDP
|
|
Notification
|
Event Logging
|
|
Hardware Specification
|
|
Interface
|
Ethernet 1 Port, RS-232C 1 Port, DC 5V Power input
|
|
2.5dBi SMA type Dipole Antenna
|
|
Temperature
|
Operation -5~55
Storage -20~70
|
|
Humidity
|
Operation 10% to 90%, Non-Condensing
Storage 5% to 90%, Non-Condensing
|
|
Serial
(RS-232C)
|
Baud Rate Max 230,400bps
|
|
Stop bits 1
|
|
Parity None, Odd, Even
|
|
Flow Control XON / XOFF (Software),
CTS / RTS (Hardware), None
|
|
Power
|
DC 5V input
|
|
Power Consumption
|
Under 600mA ( 3.3V )
|
|
Dimension
|
90.5mm X 94.5mm X 22.7mm (Excluded antenna size)
|
