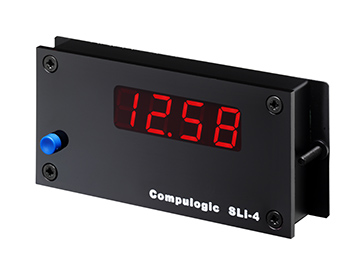

SLi-4 Smart Level Meter (PP9030-V02)

The Compulogic SLi-4 is a web enabled, flexible and simple to configure Level meter. Featuring a large 4 digit LED display, on-board web server, email alerts and full remote access via the integral Ethernet interface.

The Integrated web server of the Compulogic SLi-4 provides flexibility and ease of programming via a standard web browser. Additionally, meter readings can be viewed remotely via a web browser and email alerts can be generated when readings exceed user programmed thresholds.  Both XML and SNMP are also supported allowing configuration and remote reading using SNMP based network management systems.

The sensor input is configurable for any range from 0-32mA or 0-10V making the SLi-4 compatible with many level transducers including the Compulogic L400 level sensor.  Any given input range may be programmed to display any corresponding user unit range from -9999 to +9999 allowing the meter to read directly in mm, inches, litres, gallons etc. When used to measure tank levels the unit will compute the correct volume versus liquid level for two standard (linear or cylindrical), and one user defined tank geometries.  Direct or reverse acting sensors are also supported.

A front panel push button enables the displayed value to be selectable between liquid level, liquid volume, min volume, max volume, % volume or transducer input value. Any or all of the displayed values are available simultaneously and remotely in a web browser or NMS.
