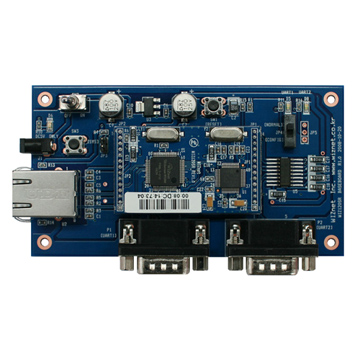

WIZ120SR-EVB Evaluation Kit for WIZnet WIZ120SR
Manufacturer: Wiznet
Price: $69.30
Features
- Direct Connection to Serial Devices
- Adds Network Function Simply and Quickly
- Provides Firmware Customization
- Supports 2 Ports Serial
- Provides System Stability and Reliability by using W5100 Hardwired Chip
- Includes Configuration Tool Program
- Supports PPPoE Connection for ADSL
- Supports Password for the Security
- Supports Serial Configuration – with Simple and Easy command
- 10/100 Ethernet Interface and max 230Kbps Serial Interface
- Supports Static IP, DHCP, PPPoE
- Supports DNS function
- RoHS compliant
Specifications
| Architecture |
TCP / IP |
W5100 |
| PHY |
Embedded in Included in W5100 |
| MCU |
ARM Cortex-M3 |
| Network |
Interface |
RJ45 |
| Protocol |
TCP, UDP, IP, ARP, ICMP, IGMP, MAC, DHCP, PPPoE, DNS |
| Serial |
Interface |
UART1 – DB9(male), UART2 – DB9(male) |
| Serial format |
Data bits: 7,8
Parity: None, Odd, Even
Stop bits: 1, 2 |
| flow control |
None, XON/XOFF, CTS/RTS |
| signal |
TXD, RXD, RTS, CTS, GND |
| Speed |
1200bps ~ 230Kbps |
| Software |
Remote Download and Configuration |
| Temperature |
0 ~ 70°C (Operating), -40 ~ 85°C (Storage) |
| Humidity |
10~90% |
| Input Voltage |
DC 5V |
| Power Consumption |
Maximum 200mA @ 5V |
| Connector type |
1x14 2mm header X 2
DB9(male) X 2
RJ45(Tab down type with 2 LED) X 1 |
| PCB Size |
110mm X 60mm |
Contents
 |
WIZ120SE-EVB |
| CD |
| 5V 500mA Power Adapter |
| Serial Cable, UTP cable(Cross) |
|
