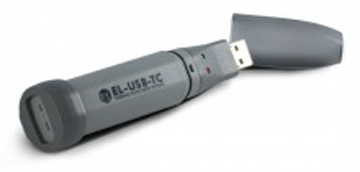

EL-USB-TC

• -200 to +1300°C Measurement Range (K-type)
• -130 to +900°C Measurement Range (J-type)
• -200 to +350°C Measurement Range (T-type)
• USB Interface for Set-up and Data Download
• Bright Red and Green LED Indication

This data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple . A thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the thermocouple type, logging rate, start-time, logging mode, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed software under Windows 2000, XP or Vista. Data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which will last for approximately 6 months.

	Datasheet
	Download Software
