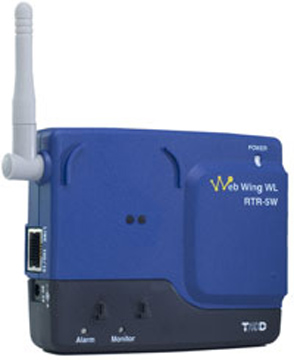

RTR-5W Network Connected Wireless Data Collector

Manufacturer: T&D Corporation

Price: $640.63

The Wireless RTR-5 Series is a system wherein the data measured and recorded by the data logger units can be transmitted to any of our handy multi-functional Communication Interfaces (RTR-57U / RTR-50 / RTR-5W) via short wave radio communication.

The transmission range is up to 100 meters if direct and unobstructed. The RTR-5 Series gives you the power to check data, start and stop recording and collect data on-site without even having to gather the units.

Application Examples

For instrumentation such as flow meters, wattmeters or analyzers
Recording temperature of rotors and moving parts on production lines
Recording temperature and humidity in brewing and agriculture cultivation
Recording events (ON/OFF) for doors as well as air conditioning units
Measurement in places where wiring is difficult or impossible.

Features

Gathers and Manages Remote Data via a Network
With the Internal WEB Server, use a browser to check current readings and view in
simple graph form
Internet Connection allows for Public Access to Data
Set Upper / Lower Limits and Send Warning Report E-Mail
Connect to a Wireless LAN via CF Card
Requires Wireless RTR-5 Series Logger
Includes Software, Manual, AC Adapter and Lan Cable

Specifications

Compatible Devices	RTR-51(L) / 52(L) / 52Pt(L)/ 53(L) / RVR-52A(L)
Function	- Download recorded data from RTR-5 Series Data Loggers - Control data loggers devices - Network Connection Functions - Monitor current readings via browser - View recorded data in simplified graph form via browser
Communication Method	Wired LAN: 100 BASE-TX / 10BASE-T (RJ45 Connector) Wireless LAN: IEEE802.11b (CF Wireless LAN Card)
Communication Speed	Special Short Wave Radio Wireless: 2000 Readings per Minute Optical Communication: 2400bps
Communication Time	When Downloading Data from Logger with RTR-5W via Wireless Communication (1 Full Data takes about 420 Seconds)
External Output (Warning Output)	External Output (Warning Output) One point photo MOS relay contact 50V / 0.1A
Power	Specific AC adapter (AD-0605)
LED Displays	Power On, Wireless Communication in Progress, Warning Occurrence
Current Consumption	300mA (when wired LAN is used)
Operating Environment	Temperature: 0°C to 60°C Humidity: 20 to 80% RH (No Condensation)
Dimensions	83mm × 102mm × 28mm (excluding protrusions)
Weight	About 135g
Compatible OS	Windows 2000 / XP / Vista English

TandD RTR-5 series of loggers User Manual (pdf)

RTR-57 Data Collector Manual (pdf)

Important Notice for International Wireless Customers

The use of Radio Frequency products is tightly regulated by local laws. Wireless products sold by MicroDAQ.com Ltd. are approved for use in the U.S. and Canada, but may not be in other countries.

It is the sole responsibility of our customers to insure that the local use of wireless products purchased on this site is in full compliance with all local laws and regulations.

MicroDAQ.com Ltd., and the manufacturers it represents will not accept any responsibility for the use of unapproved wireless product in other countries.
