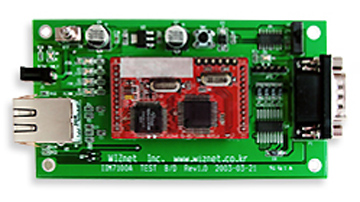

WIZ100SR-EVB Serial to Ethernet Module Eval Board

Manufacturer: Wiznet

Features

Ready-to-Go Serial to Ethernent Gateway Module mounted with RJ-48 connector
Serial Command Support
- Simple Command Frame Format
- Comprehensive & Readable Command Set for Network and Serial Settings
- Available on-site Configuration without PC
Compatible with EG0SR07150MJ
Upgraded Functions for Enhancing Security
- Search Identification Code Input for searching modules
- Password Input for TCP connection
W5100
10/100Mbps Ethernet Interface, Max 230Kbps Serial Interface
Easy & Powerful Configuration Program

Architecture	TCP / IP	W5100
	PHY	Embedded in Included in W5100
	MCU	GC89L591A0-MQ44I(fast 80C52 compatible) - 62K Bytes in-system programmable (ISP) Flash
	Memory	MCU Internal SRAM 16K Bytes MCU Internal EEPROM 2K Bytes
	Serial	RS-232(LVTTL)
Network	Interface	10/100 Mbps Auto Sensing, RJ-45 Connector
Network	Protocol	TCP, UDP, IP, ARP, ICMP, MAC, PPPoE
Serial	Flow Control	None, XON/XOFF, RTS/CTS
	Serial Format	8-N-1, 8-O-1, 8-E-1, 7-O-1, 7-E-1 (DataParity-Stop bit)
	Speed	1200bps to 230Kbps
Dimensions		40mm X 62mm X 17mm
Connector Type		2mm Pitch 12 pins, 55mm X 40mm
Input Voltage		3.3V Internal Operation
Power Consumption		300mA
Temperature		0Ž ~ 80Ž (Operating), -40Ž ~ 85Ž (Storage)
Humidity		10 ~ 90%
