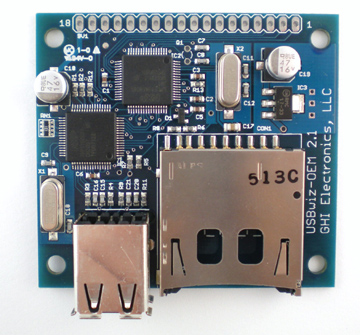

USBwiz-OEM Board ( v2)

Manufacturer: GHI Electronics

Out of Stock

Important note: The SD card connector used on this board is now obsolete. Customers interested in this product in future can utilize the USBwiz chipset to create their own OEM board. A replacement product is expected to be available early December.

A redesign of GHI's popular USBwiz-OEM board. The new board detects SD card insert/removal. Do not confuse the board revision with the firmware revision. Either firmware revision will work on either board.

Key Features

Fully assembled and tested.
Can be mounted to almost any case using 90 degrees brackets.
Standard .1" spaced holes for header for user interface.
Secure Digital (SD)/ Multi Media Card (MMC) Card connector.
Dual USB connector.
Requires "regulated" 5V.

Downloads

	Latest Firmware See version info below
	ISP1160 Data Sheet
	LQFP 64 Package Outline
	Manual

USBwiz OEM Board

	Brochure
	Dimensions
	Schematics

(GHI-00006)
