uALFAT MicroSD Board OEM Board for uALFAT™ IC + Micro SD

Note:  Saelig is no longer stocking the uALFAT MicroSD OEM Board.  However, the design files are made public and can be found here. Customers can purchase uALFAT chipsets and self-manufacture uALFAT-TF boards using these files.  Alternatively, the uAlfat MicroSD Board may be custom manufactured with a minimum order of 250 pieces and an 8-week lead-time.  Please contact a Saelig Sales Associate for details and to order.

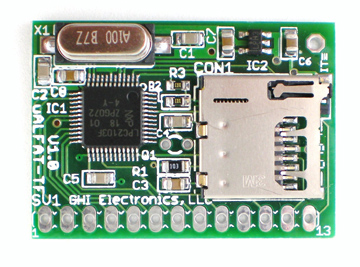

uALFAT-TF is the OEM board version of the uALFAT chip with and TransFlash micro SD card connector. It has very small dimensions which makes it ideal for a small data logger. This OEM board is one of the smallest OEMs with high performance file system ability in the world! Only 1" by 1.4". Also, the OEM board is capable of executing the standard uALFAT firmware and GHI3232.
