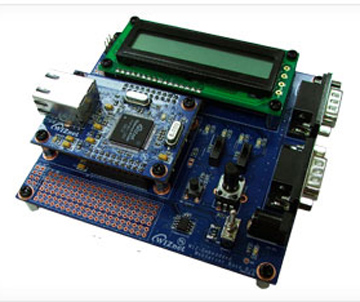

WIZnet Eval Kit for the WIZ200Web Embedded Web Server Module (WIZ200Web-EVB)

WIZnet Eval Kit for the WIZ200Web Embedded Web Server Module (WIZ200Web-EVB)

Manufacturer: Wiznet

Price: $97.50

Feature

  • Embedded Web Server module having Atmega128 & W5300
  • Operates as HTTP Server
  • Available of testing digital output (LED & LCD Control), digital input & analogue input through web browser
  • Guarantee system stability and reliability by using W5300, the hardwired TCP/IP chip
  • Provides Configuration Tool Program for easy configuration and control
  • Supports 10/100 Mbps Ethernet
  • RoHS Compliant


Specification

WIZ200WEB

MCU

Atmega128

RAM

Internal 4Kbyte, External 32Kbyte
ROM Internal 128Kbyte, External 512Kbyte
LAN WIZnet W5300 Hardwired TCP/IP

Power Consumption

 170mA

WIZ200WEB-EVB

Power

DC 5V 500mA

LED

4 LED
SWITCH

2 Slide Switch
Temperature Sensor TC77 -55°C~+125°C
VR 10k VARIABLE RESISTOR
JTAG I/F 2x10 male 2.54mm pin header
ISP I/F 2x3 male 2.54mm pin header (MKII ISP)
Serial I/F UART0 & 1, RS232 Serial Port
LAN Port RJ45 with Transformer (1CT:1CT), 2LED



WIZ200WEB User Manual
