I/O Connector Board - Connector/LED Board for Ether I/O 24 & USB I/O 24

This Product is now available in RoHS

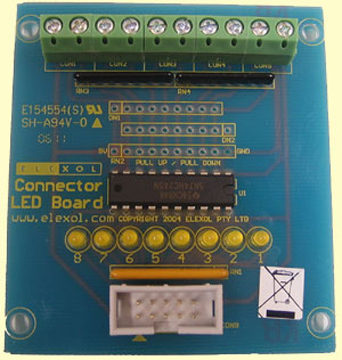

The I/O 24 Connector/LED Board can be connected to the I/O port of the modules to provide screw terminal connections with the optional added functionality of either pull up or pull down resistors as well as LED indication of the PORT Status.



The board also has provisions for either a number of pull up or a pull down configuration on the port.

The connections to the I/O channels on the Connector / LED board are by screw terminals that will accept cables 0.5 – 2 mm 1 . The connection between the I/O24 module and the Connector / LED board is via a 30 cm IDC connection cable. This cable is provided with the board.

The board has been designed to a 72mm standard width so that it can easily be mounted in DIN rail mounting modules.

• LED indication for port status
• Option of either using pull up or pull down resistor on the I/O's of the modules
• Screw Terminal Blocks
• Easy connection by 0.1" pitch 10 way box header to suit standard IDC connectors



CLICK HERE to download Connector / LED Board
