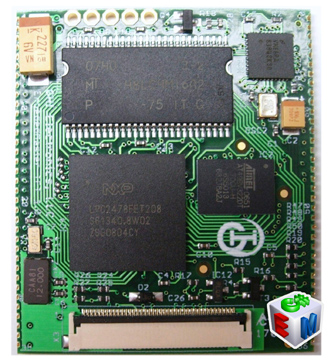

Embedded Master Module (TFT)

Manufacturer: GHI Electronics

This product is discontinued.

Although this module is in full production and will not be discontinued anytime soon, we highly recommend using EMX Module instead.

Embedded Master implements Microsoft's .NET Micro Framework (2.5 and 3.0) This allows users to run C# managed code right inside Embedded Master. Users will use Visual Studio to develop and debug programs.

Not only that, Embedded Master is the first and only OEM device that implements .NET Micro Framework and adds FAT file system and USB host capabilities. Users can access files on SD cards or USB memory devices (thumb drive, USB hard drive...etc.) and also use many other USB devices such as, mice, keyboards, joystick, printers, bluetooth dongles and many more.

The module includes a 0.5mm 40 pin connector for LQ043T1DG01 TFT display from Sharp. This color TFT LCD is 480x272 and compatible with LCDs used in PSP from Sony.

Using other TFT or SPI LCD is possible as well.

Windows SideShow is also fully supported.

Visit Microsoft's website for more details on .NET Micro Framework

.NET Micro Framework main page

NET Micro Framework

	Beginners Guide to NETMF Learn about all the AMAZING capabilities of .NET Micro Framework.
	GHI NETMF SDK V 1.0.4 RC Includes firmware, GHI libraries and documentation. Note that it includes other NETMF products. Release Notes
	TeraTerm Terminal Free Terminal Software for Windows
	Microsoft NETMF API Reference Microsoft's API reference for .NET Micro Framework.
	GHI NETMF Library Documentation Downloadable documentation is in the SDK

Downloads

Embedded Master Module

	Brochure and Pinout
	Dimensions scale 4:1
	Embedded Master vs. EMX
	GHI Products Selection Guide .NET Micro Framework Comparison Document
	Soldering Reflow Profile
	User Manual Also covers the Development System + Getting Started
	Software Development Kit 3.0 (SDK) This is for NETMF 3.0 -- Do not use.
