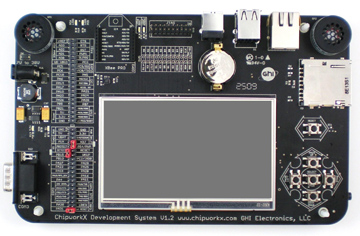

ChipworkX Development System

Manufacturer: GHI Electronics

Price: $399.95

ChipworkX Development System is the official kit from GHI Electronics for ChipworkX Module. This kit exposes various peripherals and interfaces that make it an ideal fast start for any project with .NET Micro Framework with high performance and ultimate capabilities. Furthermore, most of ChipworkX module signals such as GPIO, SPI and UART are exposed on 0.1" header pins for easier prototyping.

Key Features

ChipworkX MINI9261I Module
480x272 4.3" TFT Display with touch screen.
RJ-45 Ethernet connector
Standard JTAG connector
TFT signals exposed
Digital IOs exposed on 0.1" header pins.
2 SPI (8/16bit)
I2C
RS232 interface with hardware handshaking.
3 UART
1 PWM
One-wire interface
SD/MMC card connector
USB Device port
Dual USB Host ports
XBee module connector for wireless communications
3D Accelerometer BMA020
MP3\MIDI decoder chip VS1053
Stereo Speakers and audio jack
Touch screen controller with 2 ADC ports
Real Time Clock Battery
LEDs and Push buttons
Power over USB
DC power input 7~30 volts
RoHS Lead Free

.NET Micro Framework

	Beginners Guide to NETMF Learn about all the AMAZING capabilities of .NET Micro Framework.
	GHI NETMF SDK V 1.0.4 RC Includes firmware, GHI libraries and documentation. Note that it includes other NETMF products. Release Notes
	TeraTerm Terminal Free Terminal Software for Windows
	Microsoft NETMF API Reference Microsoft's API reference for .NET Micro Framework.
	GHI NETMF Library Documentation Downloadable documentation is in the SDK

Downloads

ChipworkX Module (MINI9261I)

	Brochure and Pinouts
	GHI Products Selection Guide .NET Micro Framework Comparison Document
	User Manual Includes Module and Development System
	Software Development Kit 3.0 (SDK) This is for NETMF 3.0 -- Do not use.
	ChipworkX 3.0 Library Documentation This is for NETMF 3.0 -- Do not use.
