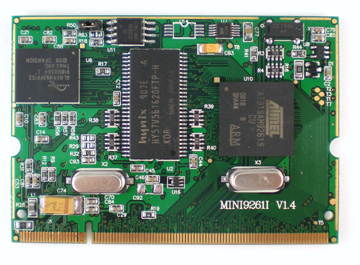

ChipworkX Module (MINI9261I)

Manufacturer: GHI Electronics

Price: $149.95

ChipworkX is a 200 MHz ARM9 DIMM200 single board computer running .NET Micro Framework internally. This enables developers to write applications using Microsoft Visual Studio and C# programming language.

Micro Framework is fully supported, in addition to SideShow and many GHI exclusive features, such as USB Host and PPP support. Not only that, ChipworkX is the first and only OEM device that implements .NET Micro Framework and adds Database and Native User Code (Runtime Loadable Procedures, RLP) capabilities. Developers can now write their own native methods using C or assembly without the need for Micro Framework porting kit or knowing anything about its internals or Interops interfacing.

Key Features

Software:

.Net Micro Framework 3.0 hosted, V4.0 ready
Windows SideShow
SQLite Database Support
Native Procedure (RLP)
LCD Support (TFT)
Touch Screen Support
FAT File System
Full TCP/IP Stack
SSL
PPP Stack
DPWS
USB Host Support (Thumb Drives, Hard Disk, Mouse, Keyboard, Printer ...etc)
Register Access
Many Other Native Functions

Hardware:

200 Mhz 32-bit ARM 9 Processor
64MB SDRAM
256MB NAND FLASH (seen as an internal drive)
8MB NOR FLASH (For user deployment and EWR)
JTAG Access
LCD Controller
Real Time Clock
10/100 Ethernet Interface
2 USB Host Ports
1 USB Device
80 Digital IO Interrupt-capable Pins
2 SPI (8/16 bit)
I2C
3 UART
SD/MMC Interface
PWM
-0 to +70 C Operational
Lead Free
Standard DIMM200 Mounting

.NET Micro Framework

	Beginners Guide to NETMF Learn about all the AMAZING capabilities of .NET Micro Framework.
	GHI NETMF SDK V 1.0.4 RC Includes firmware, GHI libraries and documentation. Note that it includes other NETMF products. Release Notes
	TeraTerm Terminal Free Terminal Software for Windows
	Microsoft NETMF API Reference Microsoft's API reference for .NET Micro Framework.
	GHI NETMF Library Documentation Downloadable documentation is in the SDK

Downloads

ChipworkX Module (MINI9261I)

	Brochure and Pinouts
	GHI Products Selection Guide .NET Micro Framework Comparison Document
	User Manual Includes Module and Development System
	Software Development Kit 3.0 (SDK) This is for NETMF 3.0 -- Do not use.
	ChipworkX 3.0 Library Documentation This is for NETMF 3.0 -- Do not use.
