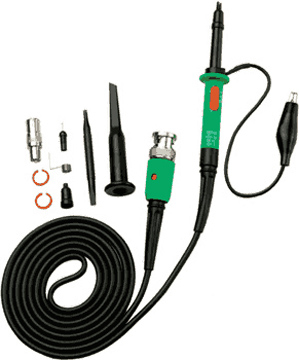

CS1001 Analog Probe

Manufacturer: Cleverscope

Price: $49.00

The CS1001 Analog probe is a switch able 1x /10x 250 MHz oscilloscope probe.

Specifications:

Item	Position x 1	Position x 10

Attenuation Ratio	1:1	10:1
Bandwidth	DC to 6 MHz	DC to 250 MHz
Rise Time	58 ns	2.3 ns
Input Resistance	1 MΩ	10 MΩ
Input Capacitance	Approx 67 pF	Approx 17 pF
Compensation Range		10-35 pF
Working Voltage	600V DC incl peak AC , derated to 50V at 10MHz and 10V at 100 MHz.
Safety	Meets IEC1010-1 Cat 1.
Cable Length	1.2 m

Accessories that are included with probe are: Channel Identifier Clip, Sprung Hook, Ground lead, Insulating Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip.

This product supersedes the Cleverscope CS010 Analog Probe.
