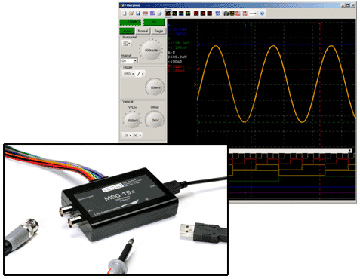

MSO-19 60MHz 200MS/s 1+8 MSO

The MSO-19 is an extremely portable USB-powered 2GSa/s oscilloscope, 200MSa/s logic analyzer, 100MSa/s pattern generator and TDR.  All channels sample simultaneously at a max rate of 200MSa/s (5ns).

Triggering options include:

• Trigger level rising edge
• Trigger level falling edge
• Pulse width and count
• 8 bit logic analyzer
• SPI
• I2C
• External trigger output. Use this to trigger other instruments.

 Pattern generator options include:

• Output synchronized start with MSO.
• Output controlled by MSO trigger (Analog, digital or serial).
• Variable pattern length.
• Independent pattern clock rate.
• Built in data creation wizard and option to load data files.

Ideal for:

• Students
• Hobbyists
• Field service technicians
• Field application engineers
• Anyone that needs a small travel scope or logic analyzer
• Anyone that needs a powerful trigger box to use with other instruments.

Features Include:

• Inputs
  1 channel - oscilloscope
  8 channel -  logic analyzer and pattern generator
• High speed sampling
  Single shot: 200 MSa/S
  Repetitive mode: 2GSa/S
  Bandwidth: 60MHz
• USB 2.0 full-Speed
• USB powered
• Advanced Triggering
     Level /edge
     Glitch
     Pulse width & count
     8 bit Logic Analyzer
     SPI
     I2C
• 100Mpt/s Pattern Generator
• 100MHz Spectrum Analyzer/FFT
• SPI and I2C decoding
• Auto-setup
• Fast, Accurate Measurements
• Automatic Storage - With save and export capabilities
• Simple Operation
• FrontPanel^TM Oscilloscope software supports Windows
• App note: Using the MSO-19 with the Radio Shack Electronic Learning Lab
• App note: Introduction to FPGA debugging using the MSO-19.
