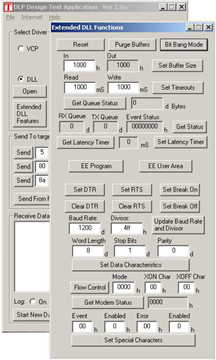

DLPDESIGN TEST APP V2.0

Manufacturer: DLP Design

DLP Design Test Application

Version 1.0 (Freeware)

Works with both the VCP and DLL versions of FTDI's drivers
The perfect assistant for debugging target firmware
Built-in help
Quick links to both FTDI and DLP Design websites
3 "Quick Send" buttons for sending 1 to 8 bytes of data to the target
"Send From File" feature for sending from 1 to 60,000 bytes of data to the target
All data returned from the target is placed in a window on the screen for quick analysis
Data logging feature for writing all returned data to a text file
And best of all, its FREE for all DLP Design and FTDI customers!

Download the DLP Design Test Application Version 1.0 here.

Version 2.0

All of the same functionality as Version 1.0
All standard baud rates supported in VCP mode
Easy access to FT232BM and FT245BM EEPROM data, both the User area and description strings.
Bit-Bang dialog provides convenient access to and control of the 8 data lines in Bit-Bang mode
"Send From File" feature sends from 1 to 400,000 bytes of data to the target
The perfect tool for debugging new hardware designs and confirming the functionality of your application

The Test Application software is delivered via email attachment.

Source code for the DLP Design Test Application versions 1.0 and 2.0 is not available for purchase.
