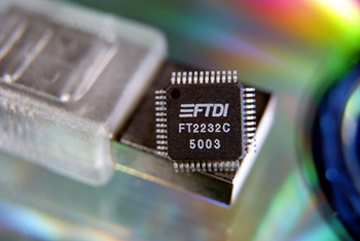

FT2232C

CLEARANCE Item! Limited Stock - please call for quantitites.

FT2232C & FT2232L - Dual USB UART/FIFO ICs (not recommended for new designs - recommended replacement is the FT2232D).

The FT2232C is the 3rd generation of FTDI's popular USB UART/FIFO IC family and the FT2232L is a lead free version of it. This device features two multi-purpose UART/FIFO controllers which can be configured individually in several different modes.As well as a UART interface, a FIFO interface and the Bit-Bang IO mode of the 2nd generation FT232BM and FT245BM devices, the FT2232C offers a variety of additional new modes of operation including a Multi-Protocol Synchronous Serial Engine (MPSSE) interface which is designed specifically for synchronous serial protocols such as I2C, JTAG and SPI bus.

Product Information

• FT2232C Data Sheet
• FT2232L Data Sheet
• Drivers
• Application Notes
• Tape and Reel Packaging Dimensions
• Schematics
• Utilities
• DLP-2232M (Basic Evaluation Kit)
• Morph-IC (FPGA Development Kit)
• DLP-2232PB (PIC 16F877 MPU Development Kit)
• MPSSE Code Examples
• MPSSE JTAG DLL

Key Hardware Features

• Single chip USB <=> dual channel serial/parallel ports with a variety of configurations
• Entire USB protocol handled on the chip: no USB-specific firmware programming required
• FT232BM-style UART interface option with full handshaking & modem interface signals
• UART interface supports 7/8 data bits, 1/2 stop bits and Odd/Even/Mark/Space/No Parity
• Data transfer rate of 300 Baud => 1M Baud (RS232)
• Data transfer rate of 300 Baud => 3M Baud (TTL and RS422/RS485)
• Auto transmit enable control for RS485 serial applications using TXDEN pin
• FT245BM-style FIFO interface option with bi-directional data bus and simple 4-wire handshaking interface
• Data transfer rate up to 1M Byte/second
• Enhanced Bit-Bang Mode interface option
• New Synchronous Bit-Bang Mode interface option
• New Multi-Protocol Synchronous Serial Engine (MPSSE) interface option
• New MCU Host Bus Emulation Mode option
• New Fast Opto-Isolated Serial Interface Mode option
• Interface mode and USB description strings configurable in external EEPROM
• EEPROM configurable on-board via USB
• Support for USB suspend and resume conditions via PWREN# and SI/WU pins
• Support for bus powered, self powered and high-power bus powered USB configurations
• Integrated Power-On-Reset circuit with optional reset input and reset output pins
• 5V and 3.3V logic IO interfacing with independent level conversion on each channel
• Integrated 3.3V LDO regulator for USB IO
• Integrated 6MHz - 48Mhz clock multiplier PLL

• USB Bulk or Isochronous data transfer modes

• 4.35V to 5.25V single supply operating voltage range

• UHCI/OHCI/EHCI host controller compatible

• USB 2.0 Full Speed (12M bits/second) compatible

• Compact 48-LD LQFP package

• Available as a Lead-free device (FT2232L) compliant to EU directive 2002/95/EG RoHS

Application Areas

• USB <=> dual port RS232 converters

• USB <=> dual port RS422/RS485 converters

• Upgrading legacy peripheral designs to USB

• USB instrumentation

• USB I2C bus interfaces

• USB JTAG programming

• USB SPI bus interfaces

• USB industrial control

• Field upgradeable USB products

• Galvanically isolated products with USB interfac
