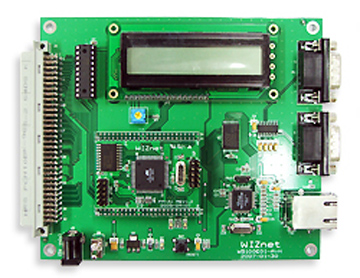

WIZnet Chip Evaluation Board (W5100E01-AVR)

Features

• Full-Duplex Data Transfer up to 6Mbps with Atmega128
• Internet Application Protocols : ANSI C Source Codes such as TCP, UDP, DHCP
• By using external 96pin connectors, AVR’s all pins can be used coping with developer’s needs
• Available of testing SPI Interface
• Provides various application source codes : Loopback, Webserver, Ping\
• Support ISP & JTAG Interface

Specifications

Development Environment

• Compiler All source codes are developed by GCC Compiler
• Firmware programming ISP Cable

Contents

• W5100E01-AVR + PM-A1
• CD (Source Codes, Schematics, Manuals)
• 5V 2A Power Adapter
• Serial Cable, UTP cable
• AVR ISP cable (Option)
