Dear Colleague,
|
|
 I
trust you're enjoying your summer! Here at Saelig we've been busy
hunting for new, remarkable products. We've also been busy
writing for the technical press. Did you see some of
the recent white papers we've published? Here are two: "Why Should You Have a
Digital Pattern Generator" and "Bluetooth Moves Beyond
The Earpiece To Rule Other Applications" Since we last
wrote we've announced the new products highlighted below!
|
|
|
|
|
|
|

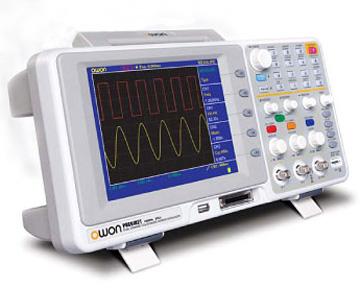

New Owon Scopes
|
 We've just introduced two new benchtop
scopes from Owon
-the PDS8102T
(100 MHz) and PDS8202T
(200 MHz). These low-cost 2-channel scopes sample at 1 Gsa/s and
2 GSa/s respectively, and are packed with useful features normally only
seen on higher-end DSOs including video trigger, auto-measurements,
large 8" full color LCD display, XY Mode, auto-set, averaging,
math functions, USB output, waveform storage, 3-year warranty,
etc. Even FFT functionality is included to view
spectrum information, as well as Autoscaling and Trigger Holdoff.
The record length is a huge 2M data points, which allows great depth
for investigating fast, intermittent pulses. More...
|
|
|
|
|

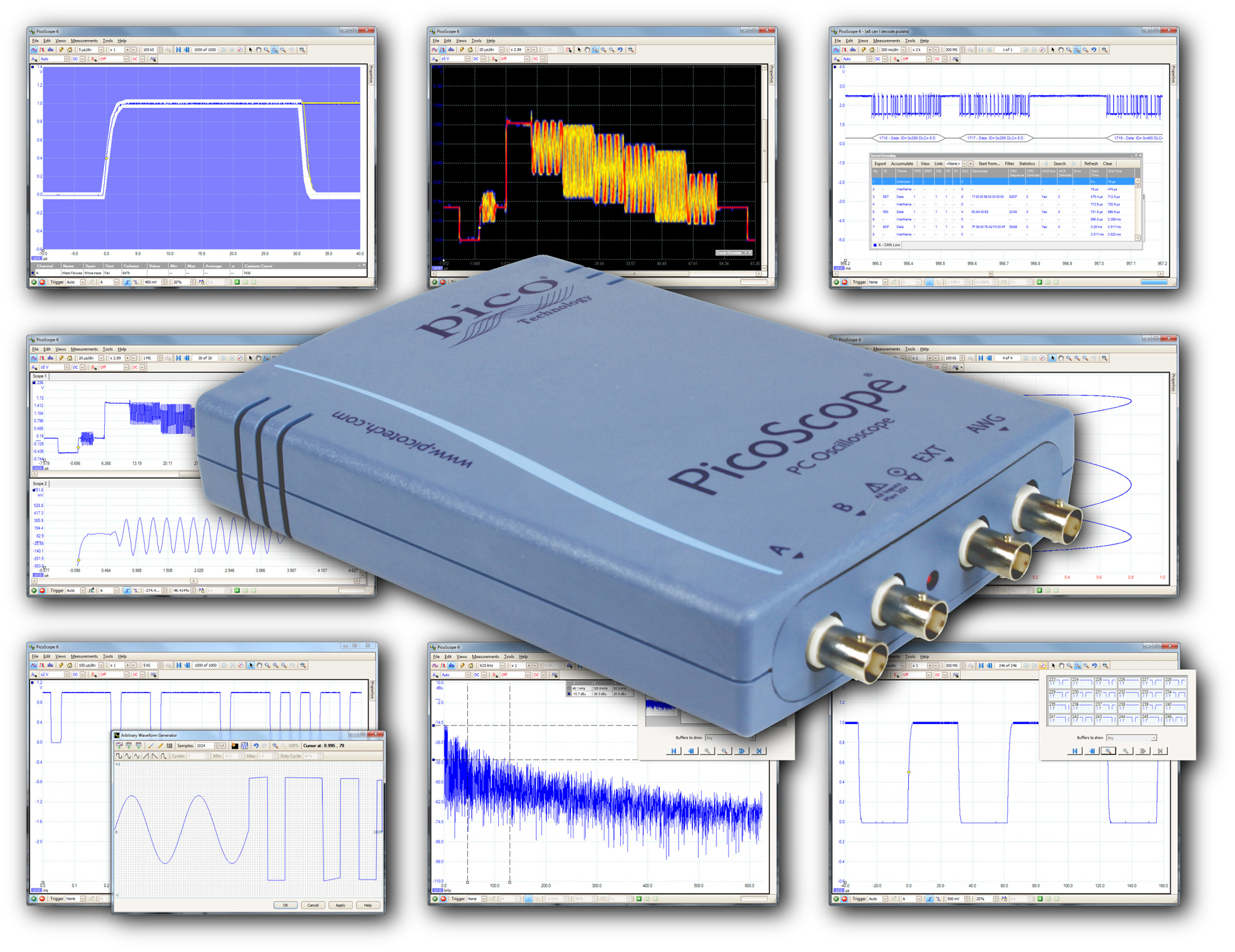

12-bit Precision PC Oscilloscopes With
Built-in AWG
|
|
 Pico's PS4227
is a new, economical 2-channel 100MHz USB scope with a real-time sampling
rate of 250 MSa/s. This precision USB oscilloscope is ideal for general
purpose, scientific and field-service use. With 12-bit resolution -
adjustable up to 16 bits in enhanced resolution mode for repetitive signals
- it also makes an excellent A/D choice for noise, vibration and
mechanical analysis. Powered from a PC's USB port, PS4227 includes an integrated spectrum analyzer, function
generator and arbitrary waveform generator - a complete test and
measurement laboratory that is small enough to take anywhere. A third input is a dedicated external
trigger, while a fourth BNC connector is provided for the output of the
signal generator. This signal
source allows you to create an arbitrary test signal, draw your own
waveform using the graphical editor, or use one of the six preset
waveform types. More...
|
|
New
50MHz Function Generator Sets New Price/Performance Point
|
 The TTi TG5011 is
a combined Function/Arbitrary/Pulse Generator covering the extremely wide
frequency range of 1µHz to 50MHz.
Providing high-purity sine waves with low harmonic distortion and
very low phase noise over the full frequency range, TG5011 incorporates a pulse generator mode which provides
wide range pulse width and delay independent of period. Pulse period can
be set between 2000 seconds and 80ns (0.5mHz to 12.5MHz) and the duty
cycle can be as low as one in two billion. Rise and fall times are also
independently variable over a wide range. Waveform frequency can be
accurately set at up to 14 digits and is based on a TCXO time-base
oscillator with a stability of 1ppm. Even very low frequencies can be set
(e.g. 1mHz with a resolution of 0.1%) with high stability (1ppm). More...
|
|

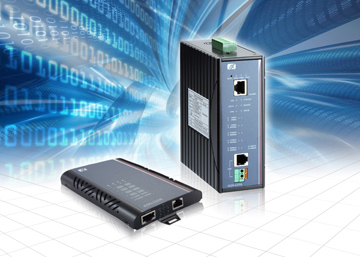

Economical
Ethernet Extender Sends 10/100 Ethernet Up To 300 Meters
|
 The iCON-32300 range of
Industrial Ethernet Extenders address the problem of typical UTP cables
which cannot transmit over 100 meters length per segment. iCON-32300
industrial Ethernet extenders can extend Ethernet connectivity in
existing facilities over existing copper telephone wire or coaxial cable
without needing to install extra cable. These reliable and rugged devices
offer a wide operating temperature range and long MTBF and are ideal for
building automation, security surveillance, digital signage, factory
automation, and ITS (Intelligent Transportation Systems). iCON-32300
series extenders are enclosed in ruggedized aluminum cases that are wall,
DIN-rail or panel mountable. More...
|
|
Digital
Handheld USB Microscope
|
 FPC-M130 is a new handheld digital microscope/magnifier for use with
a laptop or PC for viewing items at high magnification - instantly!
Easy to operate and carry, it is ideal for component and defect
examination, PCB inspection, education, research, etc. With a 1.3-mega pixel sensor
resolution, FPC-M130 can shoot video at 30fps at VGA or 15fps at 1.3 mega
pixels, sending the signal to a USB 2.0 interface, which also provides
power. FPC-M130 has a
built-in-ring-stand and LED lighting with manual lens focusing offering
magnification up to 270x (19" monitor with 1,280 x 1,024 pixel
resolution) More...
|
|
Expand
Your Scope's Capabilities
|
|
 Low-speed serial bus interfaces such
as I2C and SPI are widely used today in electronic designs for
chip-to-chip communication. In many designs these serial buses provide
key points for test or analysis. However, since these protocols transfer
bits serially, using a traditional oscilloscope has limitations.
Traditional scope triggers are not sufficient for specifying I2C or SPI
address information.
But now you can extend your scope capability very
economically with our LAD-16128U Logic Analyzer, which offers both
IC and SPI decoding and also triggering. Use this rising-edge trigger
signal as the trigger input in your scope, and you have added great
additional functionality to any economical scope. This eases debug and
test for designs that include I2C or SPI protocols. More...
|
|

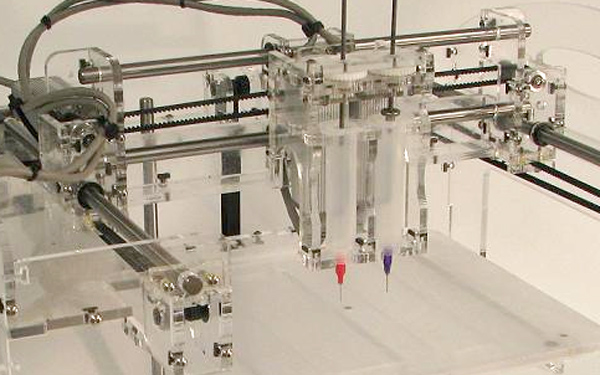

3D
Printer Kit from the Fab @ Home Project
|
 The Fab @ Home Project is an open-source worldwide
collaboration for developing fabrication technology. Aimed at
bringing 3D fabrication to the individual user (somewhat like a personal
copier) personal fabrication devices allow custom objects to be
manufactured on-demand. Just as the current digital copier allowed
anyone to reproduce paper documents, the next digital revolution will
allow anyone to make, sell, or buy fully functional objects.
Started at Cornell University in 2006, within one year the www.FabAtHome.org website received
17,000,000 hits and the project received a Popular Mechanics
"Breakthrough Award". Over 20,000 people a day now look
at the Fab @ Home website, and the Fab @ Home project is supported by a
global, open-source community of professionals and hobbyists, all excited
about contributing to tomorrow's innovation - today! The design is
affordable (~$2,400) and easy to build and modify due to the use of
a pre-built motor control system, for which Saelig is the exclusive
distributor. At the Fab @ Home website are plans that allow anyone to
build their own "fabber" along with a description of the
project's origins and worldwide examples of finished products.
|
|

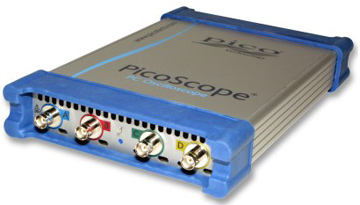

PICO
PS6403 4-ch 8-bit 350MHz 1GS Oscilloscope
|
|
 We now have stock of this high-performance
4-channel 350 MHz scope from Pico Technology, which offers an enormous 1
Gsample memory buffer. This high-end scope can display single-shot
pulses with 200 ps time resolution. ETS mode boosts the maximum sampling
rate even further, allowing a more detailed display of repetitive pulses.
The PS6403
gives you the deepest buffer memory available as standard on any
oscilloscope. Other scopes have high maximum sampling rates, but without
deep memory they cannot sustain these rates on long timebases. The
PS6403's huge 1-gigasample buffer allows you to capture at 5 GS/s down to
20 ms/ div - that's a total duration of 200 ms. Managing all this data
calls for some powerful tools, so the free easy-use display software
provided gives you a maximum zoom factor of 100 million in a choice of
two zoom methods: a conventional set of zoom controls, plus an overview
window that shows you the whole waveform while you zoom and reposition
the display by simply dragging with the mouse. More ...
|
|
Survey
|
|
 One of our partners, Byte
Paradigm, is currently conducting an on-line survey on embedded
system design. We'd appreciate if you could take 5 minutes to
participate. The survey is completely anonymous and
hassle-free. We have already received helpful feedback from
many people who just want to assist in new product development.
Click here to take the
survey
|
|
12-bit
Precision PC Oscilloscopes With Built-in AWG
|
One
of our customers is using AIM-TTi's PSA2701T in the Electromagnetic
Radiation Seminars he teaches for understanding the basics of
electromagnetic radiation. If you are near Clearwater, FL, you may
want to attend (Aug 23-27, 2010). Or if you have an
interesting application for one of our products, we'd be pleased to
highlight it (and you) in one of our future newsletters.
|
|
Featured
Product Line - Elan Digital Systems ** Newsletter
Sale! **
|
 20% OFF only
for our Newsletter Readers!
Elan's range of USB-connected, USB-powered test,
measurement, and scope products are miniature memory-stick-sized devices
that have standard BNC connectors for probes or clip-leads, but can fit
in a shirt pocket. Choose from USB-based Digital Storage Oscilloscopes,
Function Generators, Digital Pulse/Clock Generators, or Frequency/Period
Counters. They all offer isolated measurements to 300V Cat
II. USBscope50, USBwave12, USBpulse100,
and USBcount50 are
as ideal for use in educational environments as they are in engineers'
toolkits. You can even stack and synchronize them. Elan's unique
"stackability" feature allows use of multiple devices together,
providing a flexible, cost-saving arrangement. Source code for both
drivers and application software is provided too under GNU license,
allowing for modification and customization for specific
requirements. Just use Instant
Rebate Code NNEDS1008.
More...
|
|
Hot
Products- Many with exclusive INSTANT REBATES!
|
|
Check
out the great deals on the popular products below. INSTANT
REBATES are offered only to our NEWSLETTER subscribers! Hurry,
coupons expire 9/31/10! Use code NN1008.
|
|
|

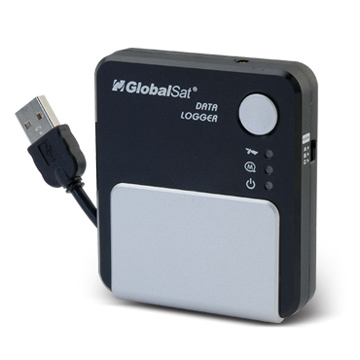

GPS Data Logger
Record time, date, speed, altitude and GPS location! Also GeoTag
your photos!
|
|
|
|
|
|
Owon PDS5022S Guaranteed Lowest Price!
Portable Digital Storage Scope, 25MHz 2-ch color
|
|
|
|
|
|
uCAM-TTL 120° JPEG Camera
Compact form factor with built-in lens
|
|
|
|
|
|
Owon HDS3102MN
Newsletter Instant
Rebate!
Handheld Digital Scope, 100MHz, 2-ch color LCD
|
|
|
|
|
|

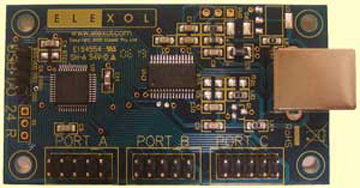

Elexol USB I/O 24R
Control 24 channels via USB
|
|
|
|
|
|
Cleverscope CS328A
2-Ch 100MS/sec Scope & Logic Analyzer
|
|
|
|
|
|
ByteParadigm GP-22050 USB IO Dev Module
Pattern generator, logic analyzer and bi-directional
protocol exerciser / analyzer
|
|
|
|
|
|
USB I2C/IO
Devasys' popular USB-to-I2C +I/O board
|
|
|
|
|
|
CGR-102 Bundle
Oscilloscope, Waveform Gen, Digital I/O
|
|
|
|
|
|
eCOV-110-P Serial-Ethernet Converter
Network your existing serial devices instantly!
|
|
|
|
|
|
USB-COM/USB-COMi-SI
USB-RS232 serial cable converters
|
|
|
|
|
|
AIM-TTI PSA2701T
Handheld 2.7GHz RF Spectrum Analyzer
|
|
|
|
|
|

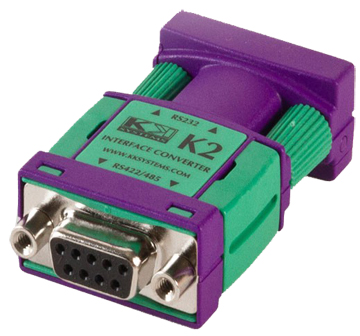

K2 RS232-to-RS422/485 Converter
DB9-to-DB9. ADE version also available.
|
|
|
|
|
|
FTDI ICs
USB-serial conversion ICs and DLP dev boards
|
|
|
|
|
|
CUPC-80 WinXP Touch Panel PC
10.2" TFT, AMD Geode LX800
|
|
|
|
|
|
uOLED-96-G1 Newsletter Instant Rebate!
0.96" 96x64 65K color screen with Goldelox SGC
|
|
|
|
|
|

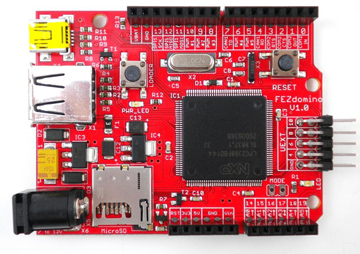

FEZ Domino
.NET Micro Framework development board
|
|
|
|
|
|
PacketMaster USB480+ USB Protocol
Analyzer Newsletter Instant Rebate!
USB2.0 Bus Analyzer/Generator - 5 free class decoders
|
|
|
|
|
Starbucks
Card
|
|
Don't
forget - coffee break is on us!
Remember to request your free Starbucks card
with your next order over $50!
Just our way of thanking you for your business. We appreciate our customers!
|
|
|
Alan Lowne
Saelig Company, President
|
|
|
|
