Dear Colleague,
|
|
 In
our constant search for new, relevant electronic products to make the
lives of electronics engineers easier and more productive, here are our
latest discoveries, all of which are available now from our warehouse,
including new scopes, a versatile logic tool, miniLCDs, Arduino displays,
an affordable USB isolator, a multifunction USB analog I/O board, custom
meters, and a 14-bit 100MSa/s digitizer.
|
|
|
|
|
|
|
New Scopes
|
 We have found a new
manufacturer of top-quality oscilloscopes at remarkable price points to
add to our extensive range of scope offerings. Introducing Siglent Technologies
- this may be a new name for our customers but they've been
providing high quality digital storage oscilloscopes to customers all
over the world since 2002, exporting to more than 40 countries. With
more than 8 years of experience in DSO research and manufacturing,
Siglent is fast becoming one of the leading DSO manufacturers - with a
growing worldwide reputation. We are highlighting two of their
models as offering exceptional value. The SDS1102CM, a
100MHz 2-Channel scope and the SDS1204CF,
a 200MHz 4-Channel DSO Oscilloscope. More...
|
|
|
|
|
Versatile Logic Tool
|
|
 We've found an amazing new lab tool for
every engineer: Principally a full-featured, low-cost 4-ch logic
analyzer, ScanaLogic2
is also a comprehensive digital signal generator - a complete lab tool in
one compact box. ScanaLogic2
provides the ability to generate digital signals, while recording the
response on other channels. It also provides
computer-independent performance and timings, with a quartz-accurate
maximum sampling rate of 20MSa/s. The PC software provided features all
the scrolling and navigation options of expensive logic analyzers: it
captures and analyzes digital lines, but, in addition, serial protocols
can be sampled, decoded, displayed and analyzed too (UART, SPI, I2C,
1-Wire, Maple bus, etc.). The built-in FFT Fourier analysis feature
allows you to check the frequencies of PWM signals as well as displaying
them simultaneously. ScanaLogic2
can monitor logic changes on up to 4 digital signal lines, store the
captured data in a file for later playback, or send them over the
Internet to other users. Recording serial data and playing it back
is as simple as audio recording. Additionally, ScanaLogic2 lets
you generate 4 channels of digital data streams: generate all kinds of
PWM signals to control motor drivers, RGB LEDs or other devices; generate
various FM signals to test speakers or ultrasound systems; generate
serial data and pulse sequences to test equipment or projects using
user-friendly syntax. ScanaLogic2
supports 1.8V, 2.8V, 3.3V and 5V logic levels, and works
with USB1.1 and USB2.0 interfaces without any need for
drivers. With all these features, ScanLogic2 is
sure to become a favorite, indispensable tool for every engineer's
kit. More...
|
|
Mini
Displays
|
 Our innovative Australian manufacturer
of intelligent, cost effective modules 4D Systems has introduced two new
intelligent 3.2" and 1.44" mini LCD displays: Micro LCD-32PT
and Micro LCD-144.

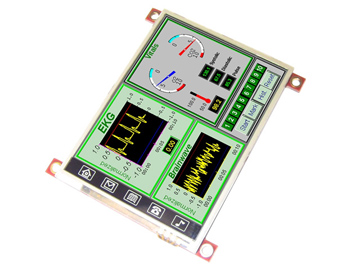

MicroLCD-32PT
is a 3.2" QVGA LCD TFT display with integrated touch screen and
smart graphics processor. With a serial interface, users can now easily
add graphics displays to microprocessor-based products. The uLCD-32PT offers
easy access to flexible embedded graphics, text, image, animation and
countless additional features. All screen related functions are sent
using a simple protocol via a serial interface. A simple 5-pin connection
provides an interface to almost any host device and supports external
SD/micro-SD memory cards for storing images, video clips, fonts and
general purpose data logging. Additionally, the module includes a
dedicated PWM audio pin that supports FAT16 audio WAV files and complex
sound generation, an on-board audio amplifier and speaker, 2 x 30 pin
headers for I/O expansion, 4.0V to 5.0V range operation and support for
all available Windows fonts and characters. The low-cost, compact uLCD-144
provides a 1.44" 128x128 resolution TFT-LCD panel which can display
full color animations, icons and video clips with a greater than 150
degree viewing angle. More...
|
|

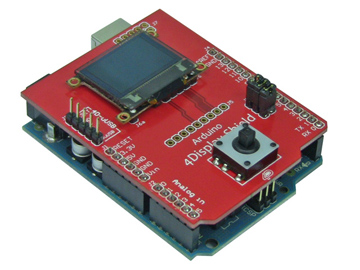

Arduino
Shields
|
 4D Systems
also recently launched a range of Arduino Display Shield modules - 4Display Shields
- that provide an easy and fast way of interfacing their G1 OLED and LCD
display modules with virtually all Arduino Boards such as the
Arduino-Mega and Arduino-Duemilanove. The display shields
come complete with an integrated display module, 5-way multi switch
joystick and male headers that help connect the display shield to the
Arduino boards. Display shields are available for the uOLED-96-G1,
uOLED-128-G1, uOLED-160-G1 and uLCD-144 modules. More...
|
|
USB
Isolator
|
 If you are concerned about ground
loops, or hazards involved with connecting devices to your PC or laptop, PoUSBiso is the
device for you. It is a USB1.1 isolator, allowing almost any
USB full speed (12MHz) device to be isolated from computer ground. Ideal
for CNC motion devices, microcontroller programmers/debuggers, and many
other PC-connected USB devices, it is compatible with most operating
systems including Windows, Linux, Mac. PoUSBiso provides 1000V isolation
and can supply 5V @ 400mA. A true hardware solution, no drivers are
needed, PoUSBiso
is a simple "plug and play" device. More...
|
|
Multifunction
USB/SPI Board
|
|

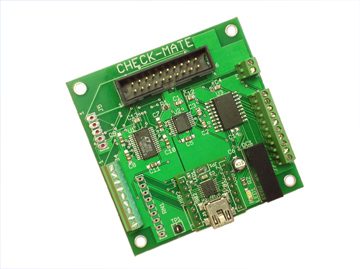

 Check-MATE
is an economical general purpose data acquisition board that may be just
what you need to get some quick I/O task done. It offers 8
single-ended 12-bit A/D inputs sampling at 110KHz , one 12-bit analog
output, and 8 digital I/O lines. Each analog channel can be programmed
for 0-5V, ±5, 0-10V or ±10V input levels. The single analog output
channel can be programmed for either unipolar (0-10V), or bipolar (±10V)
operation. All eight digital input/output lines are also
independently programmable. Check-MATE
provides a USB or SPI-bus interface for external control by a microprocessor
or a PC , and can even be powered from the USB port, eliminating the need
for additional power supplies. GUI control software is also
provided, making the board instantly usable. Check-MATE's
analog inputs can be single-ended or differential, and the single analog
output can be unipolar or bipolar. Free-download Virtual Instrument Panel
control software removes the complexities of manually typing ASCII
commands and provides an efficient means of interacting with and
controlling the Check-MATE
board out-of-the-box. Programming is easy using Visual BASIC,
LINUX, C/C++, Lab- View, LabWindows or any language that allows access
through a serial port. For embedded applications, Check-MATE can
also be driven via an SPI interface. More...
|
|
Custom
Meter Displays
|
 SGD 24-M
offers a rapid route to having a customized live-response meter/display
that meets your exact needs. SGD
24-M - a new, customizable high contrast, 2.4" TFT
color display with built-in touch screen, dual analog inputs, alarm
outputs and SPI and I²C bus capabilities, ready-made for creating a wide
range of display instruments. SGD
24-M is configured using PanelPilot, a unique
Windows-based software platform that allows users to design and customize
a range of color displays with the click of a mouse to suit individual
applications and measurements. Currently, six analog, digital and
bar graph styles are available to be downloaded via USB to the
display. Colors, text labels or scaling options can all be chosen
as needed. Once all selections have been made using this simple
click-through application, the custom configuration can be saved and
downloaded to the display. SGD
24-M has a 320 x 240 pixel color display, a USB
programming interface, and includes an integrated bezel with silicone
seal designed for panel mounting. Now it is possible to stock just
a single meter for all your meter needs - just customize it for each
application, scaling, measurement or language. Meter styles
available in software include four types of digit voltmeter, bar-graphs
and analog-style meters. Colors, text labels and scaling can be
software-selected. Advanced features allow you to add you own logo
or jpg image. More...
|
|
Universal
14-Bit Scope/Digitizer
|
|
 ChronoLogic is an Australian company
with a history of technological innovation. Their new CL4000 is a
14-bit 100 MSa/s digitizer which can be used as a fast A/D front-end, an
oscilloscope or an FFT analyzer.
CL4000 has a wide 200 MHz front-end analog bandwidth
with a switchable 20 MHz bandwidth limiter. With its 14-bit
resolution, CL4000
is ideal for FFT analysis or for time domain signals where a high zoom
factor (64 million real-time measurements) can reveal usually invisible
signal details with its sophisticated trigger settings, you
will never miss the signal you want to capture. If you need more than USB
hubs. With USB-inSync™ technology built-in, you can expand to over 100
channels, or combine CL4000
with other synchronized family devices (e.g. sensor interfaces or
sophisticated digital I/O devices, or analog outputs, to build complex
measurement systems). All connected units can appear as one multi-LabView
or any other programming software using Chronologic's COM driver library.
CL4000
offers fully-isolated 14 bit·input ranges from 80mVpp to
80Vpp. More ...
|
|
Price
Reductions!
|

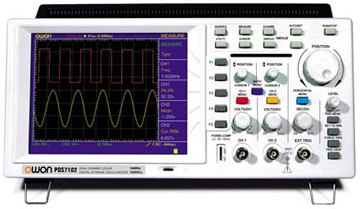

We've
recently been able to markedly reduce the price for our handheld Owon
oscilloscopes and Elan memory-stick-sized USB testgear devices.
Take a look at the low prices on these these great toolbox essential
bargains!
|
|
New Products
|
New
products are arriving every day on our website so please check back
often! Our suppliers are also able to design customized products to
suit your exact needs, if the volume is sufficient. Adeunis,
for instance, specializes in adapting Bluetooth modules to custom
form-factors; Amplicon makes
customized industrial PCs with software preinstalled, ready-t-go out of
the box for surveillance and control applications; BITwise's QuickUSB allows
you to customize a USB product so that it pops up on a PC with your name
on it; and others can make a product to suit your specs - contact us for
details.
|
|
Hot
Products- Many with exclusive INSTANT REBATES!
|
|
Check
out the great deals on the popular products below. INSTANT
REBATES are offered ONLY
to our NEWSLETTER subscribers! Hurry, coupons expire
11/30/10! Use
code NN1010.
|
|
Starbucks
Card
|
|
Don't
forget - coffee break is on us!
Remember to request your free Starbucks card
with your next order over $50!
Just our way of thanking you for your business. We appreciate our customers!
|
|
|
Alan Lowne
Saelig Company, President
|
|
|
|
