Dear Colleague,
|
|
We've found some more
exciting new products to share with you this month (maybe just the
product you need for your next project?) including:
·
Xprotolab - the world's smallest
oscilloscope
·
PL2771 Superspeed USB3.0-SATA IC
·
W5200 SPI Ethernet IC
·
WizFi210 & WizFi220 Ultra-low
Power Serial to WiFi Module
·
Railroad-approved Industrial PC's
·
Configurable Industrial
Switches
·
Low-Cost Temperature
Transmitter
|
|
|
|
|
|
|
World's Smallest
Oscilloscope
|
 We recently introduced Xprotolab -
the first mixed-signal oscilloscope with a built-in arbitrary waveform
generator - all housed in a tiny 1" x 1.6" DIP module with a
0.96" 128x64 pixel OLED display! It can be mounted directly on a
breadboard or pcb for in
situ testing and verification. Based on Atmel's ATXMEGA32A4
microcontroller, with 32KB Flash, 4KB SRAM, and 1KB EEPROM, Xprotolab can
also be used as a development board for AVR's XMEGA microcontroller.
Amazingly, most features found on today's scopes are present in
Xprotolab - even an external trigger! They sell out as fast
as we get them in stock! More...
|
|
|
|
|

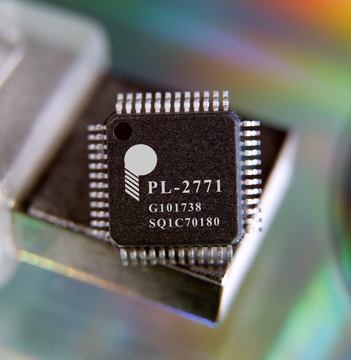

PL2771 SuperSpeed USB3.0 to SATAll
Bridge Controller
|
|
 PL2771 is
a single-chip SuperSpeed USB3.0 to SATAII compliant bridge controller,
designed to transfer data between USB3.0 and SATAII devices at the latest
USB3.0 SuperSpeed 5Gb/s transfer rates (10 times faster than
USB2.0). PL2771
also contains an internal embedded high performance 8-bit microcontroller
that can be used to support versatile system applications such as
one-button backup, power control, and other features for USB
connection. More...
|
|

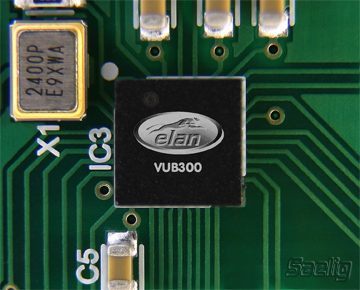

VUB300
SD-USB Host IC
|
 VUB300 is
a tiny 6x6mm QFN IC that converts a USB interface to an SDIO Host
Interface. This single-chip USB/SDIO bridge allows
SecureDigital-compliant devices to be connected to any host PC via USB. A
growing number of wireless modem chipsets are moving to SDIO as the preferred
data interface and VUB300
is the ideal solution when, for example, a target system has no spare
SDIO ports available. More...
|
|
SPI
Storm
|
 The latest USB2.0 box from Byte
Paradigm is the world's first Serial Protocol Host Adapter supporting
dual- and quad-SPI protocols. SPI Storm can access ASICs, SoCs,
FPGAs and other digital embedded systems that use serial protocols, at
speeds of up to 100 MHz at the I/O lines. Various serial protocols can be
chosen from a standard library that includes: SPI (Serial Peripheral
Interface), variants of SPI on 3 wires, and for the first time, dual-SPI
and quad-SPI protocols. SPI Storm Studio software, provided free with SPI
Storm, allows user-specific definition of custom protocols, including
those requiring bi-directional signal lines. See SPI Storm at the
Embedded Systems show in San Jose (May 2-4). More...
|
|
LoadSense
Smart Load Sensor
|
 The battery-powered LoadSense™ is a
unique intelligent load sensor that can be integrated into a
handling device such as a crane hook, hoist, or fork lift for
intelligent, real-time feedback of loading events. It has an on-board
single-chip computer for recording, analyzing and archiving readings, and
wireless transfer of immediate data to a host computer. LoadSense
provides the up-to-date information needed to optimize efficiency and
increase profitability in a wide range of industrial operations, allowing
weight measurement processes to be easily integrated with handling
operations. All live data is captured in real time and can be transferred
to a database, stored, totaled and analyzed on-the-spot. LoadSense
automatically begins transmitting data when used, and no special training
is required to install or operate the unit. More...
|
|
New
Wiznet Ethernet Products
|
|
 Wiznet will be announcing new products at ESC (San Jose -
May 2-4, 2011.

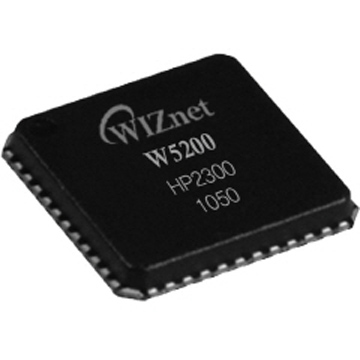

W5200 - Fast SPI Ethernet Controller
- Small and Compact, 48QFN Package
- High Speed SPI (up to 80MHz, SPI
Mode 0,3)
- Market-proven hardwired TCP/IP
Protocols, at 10/100Mbps
- Ethernet MAC/PHY
- Supports 8 independent sockets
- Power Down Mode
- Wake on LAN

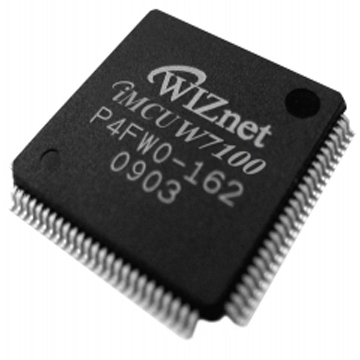

 W7100A - Single-Chip Microcontroller
with TCP/IP
- High Performance 8051 Core
- Internal 64KB Program FLASH / 256
Byte Data Flash / 64KB SRAM
- Market-proven hardwired TCP/IP,
MAC & PHY embedded
- 8 Independent hardware socket and
hybrid software stack supported
- 3.3V Operation with 5V I/O single
tolerance
- 2 Package Types : 100 LQFP &
64 QFN

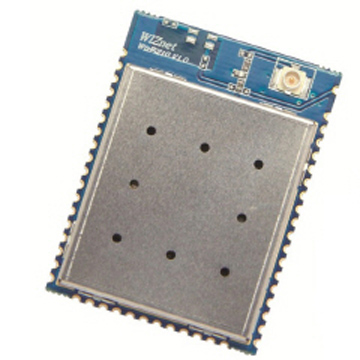

 WizFi210 & WizFi220 - Ultra low
Power "Serial to WiFi" Module
- Provides WiFi connectivity via
Serial Host Interface
- Quick Booting Time : under 20msec
- Ultra Low Power through dynamic
power management (5µA on standby & 110µA in sleep
mode)
- Operates with standard 802.11b
WiFi at 11Mbps
- Operating temperature : -40c ~ 85c
- Compact Size : 32 x 23.5 x 2.9
(mm)
- CE, FCC, KCC Certified
- WizFi220 : External Power AMP
supported
|
|
Railroad-approved
industrial PC's and servers
|
|
 Amplicon has been providing custom
rail solutions worldwide for over 25 years. With the increased pressure
on budgets and a move to a COTS-style purchasing philosophy within the
rail sector, Amplicon has introduced a range of fully approved systems

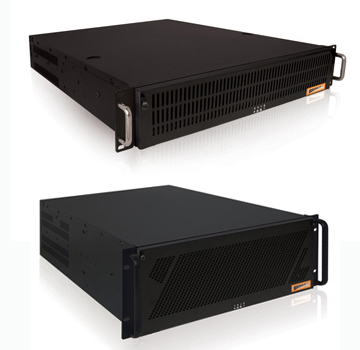

that will meet most rail-side applications.The new Impact-R 2020 RAIL
& Impact-R
4010 RAIL are rail-approved industrial computers
specifically designed for rail-side applications and have been
independently certified to rail standards EN 50155:2007 and EN
50121-4:2006. Powered by the latest Intel Core i5 and i7 processors, the
systems feature iAMT 6.0 remote support. Excellent processing performance
and hot-swap storage are among some of the standard features making the
Impact-R an ideal choice for rail server requirements. More...
|
|
Next
Generation Configurable Industrial Switches
|
|

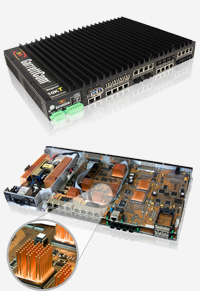

 The Magnum 10KT managed switch from
GarrettCOM is a 36-port configurable switch providing rack-mount space
efficiency for heavy duty industrial applications. Watch our training video for
more detailed information.
· Dual High voltage AC/DC and
low voltage DC hot-swappable power supplies in a 1.5U
rack-mount package: for redundancy and increased reliability.
· Precision timing, full IEEE
1588v2 implementation: High precision IEEE 1588v2 timing synchronization
with precision as low as single-digit nanoseconds, making it an ideal
solution for the power utilities market.
· Energy-efficient thermal
design for maximum reliability: New advanced thermal design techniques
enable the 10KT to deliver high reliability and configurability even at
extended operating temperatures.
|
|
Low-Cost
Temperature Transmitters
|
|
The ST131 is a low
cost two-wire transmitter just introduced by Amplicon that converts a 100
ohm platinum RTD sensor input to a proportional 4-20mA signal. This
ASIC-driven RTD transmitter offers convenient PC-based setup through a
USB interface and the performance advantages of analog signal conditioning.
The key features and benefits of the ST131 transmitter include:
· Easy set up and digital
calibration via USB with Windows-based configuration software.
· Flexible RTD or linear
resistance input ranges.
· Supports any 100 ohm Pt RTD.
· High accuracy and linearity.
· Fast response time (<500µ
S).
· Advanced analog signal
conditioning ASIC eliminates digitalization errors.
More...
|
|

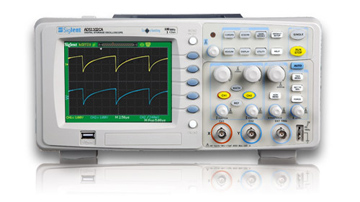

Test
Equipment Bundle Discounts
|
|

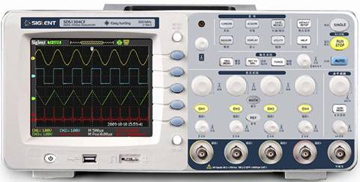

 Extra discounts are available this
month on scope/signal-generator paired bundles this month. Save over
$200! (See SAP-1 and SAP-2)
|
|
Also:
|
|
Here's
a whitepaper on Oscilloscope Basics.
There is a lot of useful information in this document, even for
students or non-engineers.
|
|
Newsletter
Only! - discounts with online COUPON CODE!
|
|
Check
out the special offer on the popular products below - just for our
Newsletter readers! Don't wait, coupon expires 5/31/11! Use
coupon code NN1105
during checkout.
|
|
Starbucks
Card
|
|
Don't
forget - coffee break is on us!
Remember to request your free Starbucks card
with your next order over $50!
Just our way of thanking you for your business. We appreciate our customers!
|
|
|
Alan Lowne
Saelig Company, President
|
|
|
|
