Dear Colleague,
|
|
 I
trust you are managing to relax a bit during the summer. Our search
for more new and exciting products from around the world continues.
Here are our latest finds, including:
- New Serial
Camera Module
- PicoScope
500MHz Scope Adapter
- SPI Storm
Software
- PocketPico
Ammeter
- Mix-and-Match
Modular Controller
- RF
Spectrum Analyzer Bundles
- New Power
Supplies
- HSCL
Oscillators
- Amplicon
USA website
- Circuit
Cellar Highlights
|
|
|
|
|
|
|
Serial Camera
Module - New! Lower Cost
|
 C429-RS232 is
a highly integrated, compact serial and encoded video camera module
which can be attached to any host system requiring an economical video
or still camera for embedded imaging applications. The module uses an
OmniVision CMOS MT9V011 VGA color sensor, matched with a versatile
Vimicro VC0706 control chip to provide a complete low cost, low power
camera system. The C429-RS232
has an on-board RS232 serial interface for direct connection to any
host PC system with a COM port for control or image communication.
Video output in NTSC or PAL, and on-chip electronic pan/zoom/tilt is
also simultaneously provided. More...
|
|
|
|
|

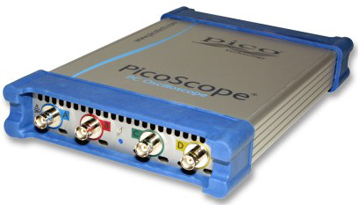

Pico Technology celebrates 20th
anniversary with fastest-ever PicoScope
|
|
 The new four-channel PicoScope 6404
PC Oscilloscope has an analog bandwidth of 500 MHz and a real-time
sampling rate of 5 GS/s, and has been unveiled for the company's 20th
anniversary. The scope also has an ultra-deep 1 GS buffer memory that
allows capture and analysis of complex waveforms, even when sampling at
full speed. More...
|
|
SPI
Storm and BP Contest
|
 Byte Paradigm has released their
latest version of software for SPI access - SPI Storm Studio.
They are also conducting an embedded system design survey to
answer questions about why engineers do or don't use specific types of
products. One respondent will be chosen to win a special stainless steel
edition Apple iPod Shuffle.
|
|

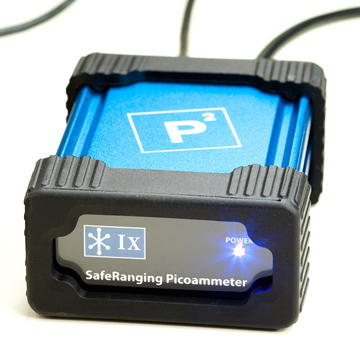

Picoammeter
for 20pA
|
 The PocketPico Picoammeter is a new,
USB-connected, very low current measurement device for DC current from
20pA to 2mA that reads at a rapid 15,000 samples per second with high
accuracy (±0.5%) and resolution (4˝ digits), protected against voltage
transients, etc. PocketPico Picoammeter measures extremely low current in
optoelectronics, ion and electron beam monitoring, materials resistance
testing and more. More...
|
|

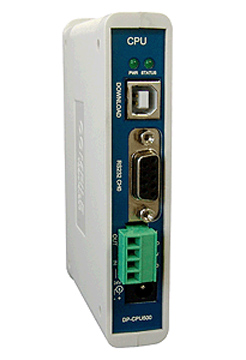

DINrail
Modular Controller
|
|
 Moacon
is a new DINrail-mounted modular control system from Comfile Technology
that allows you to choose just the right I/O modules for your specific
control needs. Its modular design enables customers to
purchase only the modules needed, and connect them in a way that not
only customizes the solution, but provides adaptability for future
requirements. C-programmable, you can also design its operation with MOACON Studio -
a free Integrated Development Environment (IDE) More...
|
|

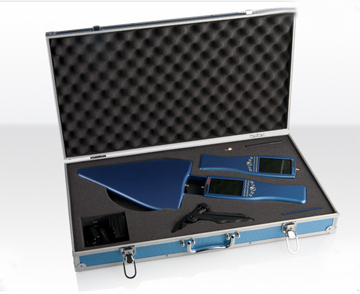

RF
Spectrum Analyzer Bundles
|
|
 We now have bundled RF spectrum
analyzers from Aaronia to cover almost any range of RF needs. EMC
Bundle 3 is especially suitable for EMC performance measurements,
pinpointing interference sources, estimating interference field strength,
verifying shielding and filtering measures, identifying faulty
components, etc. More...
|
|
New
Power Supplies
|
|
 We've added to our range of
economical power supplies with some single and triple 30V supplies.
More...
|
|
HSCL
Oscillators
|
|
 HSCL Oscillators
are a new range of surface-mount high-speed current steering logic (HCSL)
oscillators designed for volume applications. The new HCK5361 and HCK5761
differential HCSL oscillators are highly competitive and deliver higher
frequencies compared with surface acoustic wave (SAW)-based oscillator
designs. The new parts offer jitter performance of less than 1ps (12kHz
to 20MHz), an operating temperature range of -40 to +85°C and provide low
aging. Available in a frequency range from 40MHz to 200MHz, and designed
for 2.5V or 3.3V supply, these oscillators offer femtosecond integrated
phase jitter performance (200fs typical) with an ultra-low phase noise of
-138dB/Hz at 10kHz offset. More...
|
|
Amplicon
USA New Website
|
 Amplicon (UK)
has supplied Industrial Computing, Data Communications, Measurement &
Control, and Security Automation solutions for over 35 years. They offer
out-of-the-box PC solutions, with all software pre-installed, 24 hr
burn-in, and custom housing/trade-dress. They use highest-reliability components
for top-grade system and reliability. They can even guarantee Win
XP support until 2016. Visit their new website
specifically designed for the USA market. More...
|
|
Circuit
Cellar Highlights Wiznet W7100A
|
|
WIZnet's unique "Hardwired TCP/IP" has been
recognized as the leading Internet technology by Circuit Cellar, the
embedded computer magazine specializing in creative solutions, unique
applications and useful design techniques. Circuit Cellar provides
embedded engineers with insightful analysis of emerging technologies and
cutting-edge engineering ideas.
Here
are the latest articles in which WIZnet's iMCU™ W7100A has been
highlighted:

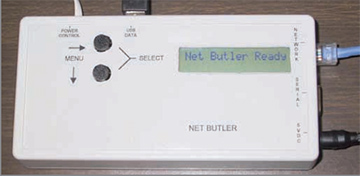

 Multifunctional
Network Controller (June 2011) Built around an
iMCU7100EVB, the design has several functions, such as reporting on
connected network devices and downloading Internet-based content. Richard
Wotiz, the author of the article, won first prize in the WIZnet iMCU
Design Contest. To see the article, click here .

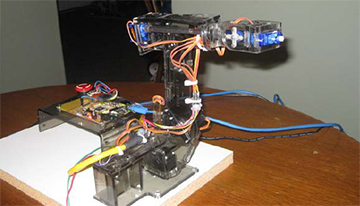

 TROBOT 2.0
is a compact six-axis robot powered by small RC-style servo motors. A
W7100 evaluation kit acts as a servo controller interface between the
robot and a PC running ABB's Robot Studio. For more detail of the
project, click here .
TROBOT (July
2011)
Here is a demo video of
the TROBOT2.0 Velocity Test.
|
|
Customer
Success Story
|
|
One of our customers recently wrote us about his
appreciation for the real-time data collection capabilities of his Owon
oscilloscope. Working online with engineers on the other side of
the world, he was able to successfully debug a test board with his Owon
scope.
I
am an intern holding down the lab during some testing procedures at
work while our two engineers are in China working on projects, he
wrote. Just the other day, we had to troubleshoot a test board we
are using for some QA procedures. I connected the scope to the
board and to my notebook and was able to screen share the scope display
online to China. We were able to see the results and diagnose in real
time. We found the problem on our test board within 20 minutes, he wrote.
Normally
it would have taken an entire day going back and forth with e-mail to
share enough data and pictures for a diagnosis. The scope made it possible
to get the board back online immediately. Without the data sharing
from the Owon scope, the solution would have taken much longer. It was
great, and the engineers were very happy to get back to bed so quickly.
Thank you for excellent products and great support, he wrote.
Do you have a success story you would like to share with us? Please
email it to [email protected].
|
|
August Newsletter
Specials!
|
|
Check
out the special offers on these products. Hurry - supplies of some items
are limited!
|
|
|
LAD-16128U
16-channel Logic Analyzer
Reg. $239
$199
|
|
|
|
|
|
SPI Xpress
USB-Based SPI Host Adapter
Reg. $699
$599
|
|
|
|
|
|
USBscope50
USB palm-size 50MSa/s Oscilloscope
Reg. $199
$189
|
|
|
|
|
|
SDS1102CM
100MHz 2-Channel DSO Scope
Reg. $695
$587
|
|
|
|
|
|
TG5011
50MHz Function, Arbitrary & Pulse Generator
Reg. $1,473
$1,277
|
|
|
|
|
|
PDS6062T
60Mhz Scope w/ TFT LCD USB (FFT)
Reg. $499
$399
|
|
|
|
|
|
PDS7102T
100MHz 500 MS/s Scope w/ TFT LCD USB (FFT)
Reg. $599
$499
|
|
|
|
|
|
Wave Generator Xpress
50 MHz 16-bit Digital Generator
Reg. $699
$599
|
|
|
|
|
|
PoKeys55T
USB Keyboard/Joystick Simulator
Reg. $82
$59
|
|
|
|
|
|
Anywhere Lights
Solar Lighting Kit
50%
Discount
|
|
|
|
|
|
KI-111
Infared Laser Thermometer with Memory
Reg. $99
$59
|
|
|
|
|
|
HDS1021M
Handheld 20MHz 1-ch Color LCD Scope
Reg. $299
$257
|
|
|
|
|
|
VR-71
Voltage Data Logger
Reg. $214
$179
|
|
|
|
|
|
Portbase-3010/RS232
Serial-to-LAN Device Server
Reg. $149
$99
|
|
|
|
|
|
FPC-M130
Digital Handheld USB Microscope
Reg. $89
$59
|
|
|
|
|
|
Starbucks
Card
|
|
Don't
forget - coffee break is on us!
Remember to request your free Starbucks card
with your next order over $50!
Just our way of thanking you for your business. We appreciate our customers!
|
|
|
Alan Lowne
Saelig Company, President
|
|
|
|
