Dear Colleague,
|
|
 Summer
will be over soon, and work will recommence at a fast pace. Project
deadlines seem to shorten and tasks have to be done with fewer
staff. Our search for new and exciting products from around the
world continues to help your work become more efficient. Here are
our latest finds, including:
- Low-cost
RF Source
- 5 GSa/s
Digitizer
- USB
Microscope
- Universal
Programmer
- Multichannel
Audio Signal Processor
- Sig-gens
from Israel
- Utra-fast
Pressure Transducer
- iPhone/iPad
Adapter Contest
- Multiple
Decoders for Logic Analyzers
- Line
Current Logger
- Analog
Design Ebook
- SPI
Resources
|
|
|
|
|
|
|

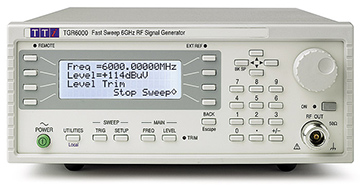

Low-cost RF
Source
|
 Aim-TTi's TGR6000 is a
low-cost RF signal generator with a maximum frequency of 6 GHz intended
for CW applications without added modulation costs. Low phase noise is
matched by low leakage, low residual FM and spurii. More...
|
|

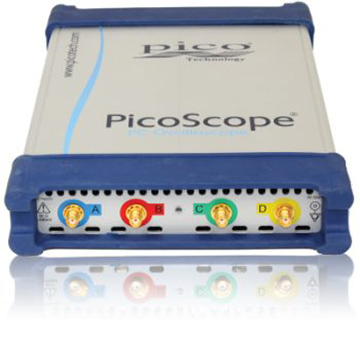

5 GSa/s
Digitizer
|
|
The
 PS6407 is
a USB-connected high speed digitizer with four 1 GHz 50-ohm analog
inputs and a 5 GSa/s real-time sampling rate. Its 1 GSa memory buffer
allows capture of long data records, while the USB streaming mode
allows for continuous capture of unlimited amounts of data at up to 13
MSa/s. The
PS6407 can digitize a 1GHz sine wave with a timing
resolution of 200 ps and makes a great front-end for customized test
equipment. More...
|
|
|
|
|
USB Inspection Microscope
Camera
|
 MV200UM is
a new, easy-to-use handheld 2-megapixel digital color microscope with USB
interface and built-in white LED illumination and versatile PC
software. It gives the ability to check PCBs, take still or video
extreme close-ups for reports, time-lapsed photos, on-screen measurements
and lots of other applications. More...
|
|
Palm-sized
Universal Device Programmer
|
 Conitec's GALEP-5 is
a new, diminutive, palm-sized programmer with a 60,000 device
output. Its high speed allows it to double as a fast production
programmer in ganged arrays, while its JTAG debugging capabilities enable
GALEP-5 to be used for microcontroller development. GALEP-5
is a universal programmer for a wide range of device types.
Ultra-compact, USB-powered GALEP-5 Device Programmer weighs less
than 200g - tiny compared with the 3 - 4 lbs of most
other programmers. Versatile GALEP-5 is normally
USB-powered, but it has two additional power options - rechargeable
internal batteries, or conventional line power plug - useful when it
needs more than 500 mA for older NMOS devices. GALEP-5 has been
designed for speed. A custom-designed pin-driver IC implemented to all
pins on the socket guarantees optimal signal quality at the output pins.
This design innovation permits an extremely small size and very low power
consumption. More...
|
|

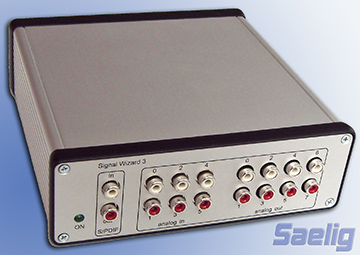

Powerful
Multichannel Audio Signal Processor
|
|
 Signal Wizard 3.0is
a very powerful audio signal processor that features multichannel
synchronous processing. It can mix, amplify, filter, delay and adjust the
phase of individual input signals, selected by using the included
intuitive PC software. Signal
Wizard 3.0 features a 24-bit, 96 kHz codec with six
analog input and eight analog output channels, and an internal DSP
processing speed of 0.6 GMACs. The
Signal Wizard 3.0 design features six analog and two
digital (S/PDIF) audio input channels, a first stage flexible 8 x 8 mixer
unit, a multichannel gain stage, a multichannel filter/phase stage, a
multichannel delay, a final stage flexible 8 x 8 mixer unit, and eight
analog and two digital audio output channels. Sample rates are selectable
from 96 kHz down to 3 kHz. Signal
Wizard 3.0 also incorporates two digital audio (S/PDIF)
inputs and outputs. Like its two channel equivalent Signal Wizard 2.5,
the software requires no knowledge of mathematics or programming. Signal Wizard 3.0
includes very powerful mixer functions - any channel can be blended with
any or all of the other channels in any proportion, since the system
incorporates mixer units at the input and output signal stages. Signal Wizard 3.0's
unique filter design engine enables standard filter types to be created
using the easy-to-use graphical software, but it also allows completely
arbitrary frequency responses, both in amplitude and phase, to be
realized via a simple text file import. More...
|
|
Advanced
Arbitrary Waveform Generators and RF Amplifiers
|
|
 We have just established a distribution
agreement to sell high quality waveform generators and RF amplifiers from
Tabor Electronics
(Israel). Tabor Electronics' performance and quality is such that Agilent
Technologies Inc. recently announced an OEM agreement establishing Tabor
as a provider of Agilent test solutions for the high-speed arbitrary
waveform generator (AWG) market. Tabor also provides drop-in replacements
for obsolete HP, Tek, and LeCroy equipment. More...
|
|

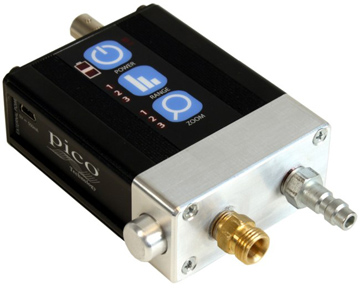

New
Pressure Transducer
|
|
 With uncompromising resolution and
accuracy, Pico's WPS500X
Automotive Pressure Transducer can perform quick and accurate pressure
analysis of many automotive systems, but also finds application in
other areas where you need to accurately measure up to 500 psi with an
ultra-fast 100 µs response time. The WPS500X contains an
internal rechargeable LiPo battery and an integrated pressure relief /
bleed-off valve. Auto zeroing, and with high noise immunity, this
temperature-compensated transducer measures rapidly changing signals that
span across a broad pressure range. More...
|
|

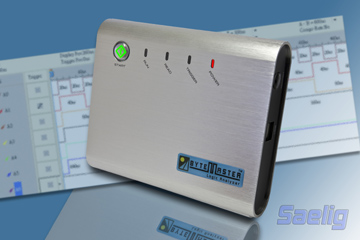

Lots
of Decoders
|
|
 The ByteMaster LAD-16128U Logic
Analyzer is now bundled with up to 30 user-selectable protocol
decoders at NO ADDITIONAL COST! Purchased seperately, these
plug-ins range in cost from $124 to $528. More...
|
|
Analog
Circuit Design E-Book
|
|
 This unique downloadable e-book covers
analog techniques that are fundamental to all electronics. Analog
electronic circuits process voltages and currents representing signals
such as music, video or the position of a robot arm. At the most
fundamental level, all electronics are analog in nature. This textbook is
for designers of analog circuitry, whether students, hobbyists or
practicing engineers. It focuses on the use of off-the-shelf parts and
designs that solve real-world problems. More...
|
|

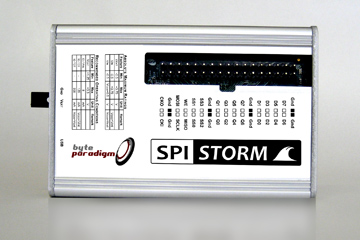

SPI
Resources
|
|
Byte Paradigm has updated the
programming resources for SPI Storm Studio. Take a look at all that's now
available here:
|
|
2011
Reader's Choice Tech Awards
|
|
If
you read ECN Magazine, you may receive an
email asking for nominations for their 2011 Reader's choice Tech Awards.
Maybe you'd like to suggest some of our novel products, such as IX
Innovations' PocketPicoammeter or Oscium's iMSO-104? Thanks!
|
|
Customer
Comments
|
|
We
love it when we get comments like this one:
"Thank you for your thorough and timely response to our
customer service issue. I must commend you on your service as
it is some of the best I have received from any of my vendors. I
will get this order placed today so we can move forward with getting our
work done. Thanks for doing a fantastic job with our
situation. We look forward to doing business with you in the
future. - Intelect Corporation Purchasing Department
Do
you have a success story or some feedback you would like to share with
us? Please email it to [email protected]
|
|

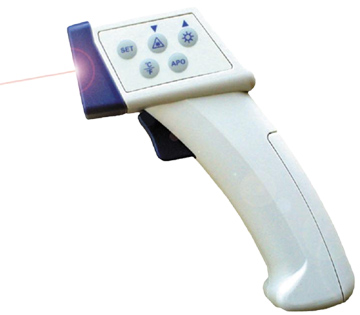

September
Newsletter Drawing!
|
|
 As a reward for reading to the end of
this email, you have a chance to win a KI-111 Infrared Thermometer
Gun ($59 value). One winner will be selected at random from
responses received at [email protected]. More...
|
|
Starbucks
Card
|
|
Don't
forget - coffee break is on us!
Remember to request your free Starbucks card
with your next order over $50!
Just our way of thanking you for your business. We appreciate our customers!
|
|
|
Alan Lowne
Saelig Company, President
|
|
|
|
