 It's
always interesting to hear from our customers after they receive our
newsletters and this month was no exception. One customer wrote: "I
have only bought one item from your company, and I subscribed to the
newsletter and have always enjoyed reading about all the new stuff that
you have available. I especially like the personal notes at the beginning
of the newsletter." I hope you do too!
"A kind heart is a
fountain of gladness, making everything in its vicinity freshen into
smiles" is a great quote from Washington Irving. A simple act of
kindness can change the atmosphere anywhere. Try doing some random act of
kindness today and see what happens!
Owon's new SDS5032E
low-cost two-channel oscilloscope, and our ever-popular MV-200UM USB
microscopes seemed to have been the hottest items this past month. Maybe
some of the following items we've found will solve a problem you have in
your own work this Fall!
- Economical Wireless Arduino Shield
- ABI Sentry Counterfeit IC Detector
- Mixed Signal Scope Price Drop
- New Sensor For Low-cost Automotive
Detection Systems
- 20GHz Microwave Signal Generator
- USB Industrial Inspection
Microscope
- Low-cost Wireless RaspberryPi
Modules
- Battery Tester
- New articles and videos
- Supplier News
- Prize Give-away!
|
|
|
|
|
|
|
Economical
Wireless Arduino Shield
|
|
 eRA-Arduino-S900
is a 'shield' or stacked module that allows Arduino boards to
communicate wirelessly with other eRA module-equipped Arduino
boards or PC hosts, using proprietary easyRadio technology operating in
the 915MHz ISM band. Host Arduino boards can now easily send and
receive up to 180 Bytes of half-duplex data per packet, seamlessly
delivered to all other hosts within range. There is no need for any
complicated 'bit balancing' or elaborate coding schemes. eRA-Arduino-S900
provides considerably greater range (typically 200m) and consumes less
power than similar WiFi or Bluetooth devices operating in the
overcrowded 2.4GHz bands. Frequency, bandwidth, power output, and data
rate can optionally be configured to allow multiple devices to
communicate free from interference from each other and any other RF
devices. More ...
|
|
|
|
|

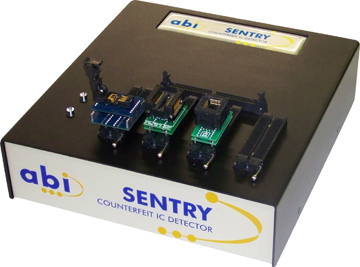

Counterfeit IC
Detector
|
|
 It's an unfortunate fact that not all
ICs on the market are genuine. The counterfeit IC industry worldwide is
worth billions of dollars, and many companies are suffering losses,
delays, and inconvenience because of the infiltration of counterfeit ICs
made from empty packages or cheap ICs re-marked to resemble actual
expensive ICs. We have found a product to eliminate this problem. ABI Sentry is a
simple to use Counterfeit IC Detector. This unique device quickly and
easily detects the authenticity of ICs and components. ABI Sentry uses
a combination of electronic parameter settings (voltage, frequency,
source resistance and waveform) to generate a PinPrint for
each pin of the IC being checked. It then compares the unique
electrical signature of known components and with suspect components.
ABI Sentry
can quickly detect missing or incorrect dies, lack of bond wires,
inaccurate pin outs and pin impedance variations. Simple pass or fail
results are returned after testing, offering a high level of confidence
in the authenticity of components. ABI
Sentry automatically verifies IC types from a historical
database or known sample. Here's a brief video that describes
it in more detail. More ...
|
|
Mixed Signal Scope Price Drop!
|
|
 Rigol
has authorized a significant drop in the sale prices of their 50MHz and
100MHz scopes which feature logic analysis. The 50MHz DS1052D has been
reduced from $899 down to $549, and the 100MHz DS1102D has been
reduced from $1199 down to $715. The DS1000D Series
Mixed Signal Oscilloscopes are extremely versatile test tools with
high-end features which include 16 Channel Logic Analysis, 1 million
points of deep memory, FFTs, signal record and replay, roll mode,
alternate trigger mode, adjustable trigger sensitivity, USB connectivity,
pass/fail output, and PictBridge printing. A calibration
certificated also included. If you were even thinking about
buying a mixed-signal scope, now is the time! But hurry because
quantities - as they say - are limited. More ... DS1052D and DS1102D
|
|
New Sensor For Low-cost Automotive
Detection Systems
|
|
 A new version of Plessey's EPIC
(Electric Potential Integrated Circuit) sensor has been released, aimed
at automotive applications. Contactless ECG and movement sensing in
automotive applications include driver fatigue monitoring and seat
occupancy. With the patented PS25203
EPIC sensor chip, discrete movements of the human body
can be detected - even at a distance, as in specific hand motions.
Manufacturers are constantly trying to differentiate their automotive
products through improved user features and comfort inside the car.
EPIC sensors provide that opportunity. Applications include: driver
monitoring for health and alertness by detecting heart rate and
respiration; determining car occupancy to adjust the ride, handling and
air bag deployment depending on the size and location of occupants. EPIC
sensor electrodes can be easily and discretely incorporated inside car
seat backs to acquire the necessary biometric data. More ...
|
20GHz Microwave Signal Generator
|
|
 The APSIN20G is a new economical low
noise microwave signal generator, with exceptional capabilities:
very good phase noise, high dynamic range, fast switching times, and
extensive modulation capabilities. The unique internal battery option
makes this compact device great for field work. It includes extensive
trigger and sweeping capabilities for ATE: remote programming via
standard SCPI or GUI; AM, FM/PM, and pulse modulation; and the
ability to lock to variable external reference More ...
|
|
USB Industrial Inspection Microscope
|
|
 MiView MV600UM2 USB
is an easy-to-use color digital microscope with a USB interface and
magnification up to 600X. It breaks the mold of traditional
microscopes by providing an integrated 2.0 MP digital/video camera and
adding functions for measurement and image transfer. It is compact
and portable, and fits a wide range of uses for industry, school and
home. Its main
purpose is for high magnification examination of surfaces.
High magnification has its drawbacks, however: in most cases it must be
used with a stand to be useful because of "image shake" when
handheld; 600X means that the viewing area and the depth of field
are both very, very small. More ...
|
|
Low-cost Wireless RaspberryPi Modules
|
|
 ERA-Connect2-PI
is a USB module that provides a simple wireless bridge between two
Raspberry Pi's (Pi2Pi), or a Raspberry Pi and a PC or any other devices
that supports USB serial communications. Utilizing seamless
easyRadio technology at 915MHz ( (ISM) bands, ERA-Connect2-PI
transmits further - with lower power consumption - than similar
2.4GHz WiFi or Bluetooth systems. Multiple modules can communicate
independently from each other, unaffected by other RF devices. More ...
|
|

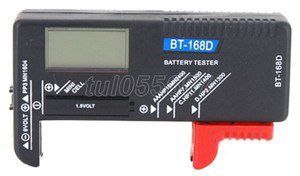

Battery Tester
|
|
 BT-168D Battery Tester
- displays the voltage level of any 1.5v or 9v battery on an easy to
read digital LCD. It even tests 1.5v miniature coin cells. Its small size
makes for easy use and portability. High quality
construction. More ...
|
|
New articles and videos
|
- Here's an
article about scope probes that
oscilloscope users will find informative.
- Pico
Techology has produced a helpful I2C article: "Debugging an I2C Bus
with a PicoScope Mixed-Signal Oscilloscope"
|
|
Supplier News
|
|
Our automotive test supplier ihr (Germany)
has opened a test laboratory in the Greater Detroit area to be
closer to American auto manufacturers. ihr's corporate
objective is to provide superior service and local customer
support. The new LIN Lab is in Livonia, MI. ihr has been
pro-active in LIN bus technology and implementation, having been a member
of the LIN Consortium from its conception. ihr has created
LIN drivers for Microchip, Atmel, TI etc., to meet the latest
requirements of LIN and J2602 standards and supporting SNPD (Slave Node
Position Detection). More ...
|
|
|
Prize Give-away!
|
|
 Congratulations
to Jim Garrity and James Christy who were September's
winners of A830L 7-Function Digital
Multimeters.
This month we invite your
entry to win a pocket-sized EL-USB-1 USB
Temperature Data Logger complete with software (a $57 value). Send
your entry with your thoughts about Saelig - or a project
you've worked on using Saelig products by October 14, 2012 to feedback.
You may be this month's lucky winner!
|
|
Dunkin Donuts!
|
|
 Would your colleagues benefit from
our news? Don't forget to forward this email to them - thank
you! Remember - Saelig always offers FREE shipping
for on-line orders over $250. And ask for a FREE Dunkin
Donuts card with your order of $50 or more. More ...
|
Alan Lowne
Saelig Company, President
|
|
|
|
