 I
hope your new year is getting off to a great start! I met with two
of our suppliers at the Consumer Electronics Show in Las Vegas earlier
this month. MakerBot
was showing off their latest 3D Printer to great interest. They announced
the MakerBot Replicator 2X, a new dual-extruder version
with heated build plate to be released next month (more details and
advanced ordering here).
Plessey
Electronics was attracting attendees with its
new gesture sensing system for consumer products (such as tablets
and PC monitors) as well as a novel solution for monitoring driver
fatigue. I also found a couple of new products which are going through
Saelig's evaluation process now, and will be announced next month if they
meet our rigorous requirements.
|
|
|
|
|
|
|

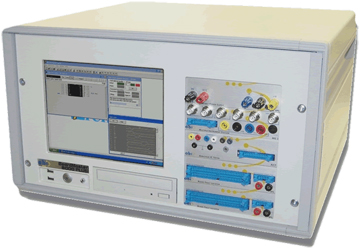

 PCB
Repair Solution
|
|
 From
UK-based ABI Electronics, we have just introduced the BoardMaster 8000 PLUS,
a unique, versatile, self-contained, and easy-to-use PCB test system.
The BoardMaster 8000 Plus is a comprehensive set of test
instruments, complete with built-in PC, for testing and fault-finding
on almost any kind of PCB. Incorporating a full range of test
instruments in one compact box and offering a variety of available test
methods, the BoardMaster 8000 PLUS provides a cost-effective
standalone solution for electronics faultfinding across a wide range of
industries. It is an integrated package of high specification
instrumentation controlled by sophisticated but easy-to-use software. The
hardware is installed in a rugged transportable case that also contains
a high specification, Windows™ PC. The BoardMaster 8000 PLUS
is based on a modular system which can be customized for specific
applications, and its software can be configured to guide users
step-by-step through a test procedure, with custom-annotated picture
images, instructions, and attached datasheets to give quick Pass/Fail
results. This is much faster and more economical than using
traditional oscilloscope and metering and other bench test methods.
More ...
|
|
|
|
|
360W
Single Output Power Supply
|
|
Aim-TTi has introduced a general purpose high power
supply for 18V/20A applications. Compact & lightweight, The TSX1820 can be
bench or rack mounted, and is supplied with front and rear terminals.
This high quality supply has very low noise, excellent transient
response, and comprehensive protection including OVP trip. Voltage
can be precisely set with useful remote sense terminals if needed. More ...
|
|
Customized Industrial PCs
|
|
Amplicon has introduced two exciting new
products this month: the compact, low power industrial embedded Impact-E
100 series, and the iCore-based rackmount Impact PCs with Sandy Bridge
processing power.

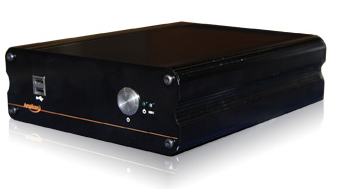

 The
Amplicon Impact-E 100 is a compact industrial
embedded PC designed and manufactured by Amplicon. Weighing less than 2kg
and using typically under 10W, this system is ideal for installations
where space and power are at a premium. The unit is powered by the Intel®
N2800 ATOM™ processor; and benefits from extremely low power consumption
whilst maintaining sufficient processing power to support dual display
and full HD 1080p video playback. Impact-E
100 can be powered by battery or solar panel, making it
ideal for remote installations where line power is not an option. The
standard system allows for the expansion of solid state, mSATA, or hard
drive storage with optional Wi-Fi and cellular modules. This embedded PC
system is ideally suited to applications in markets such as transportation,
security, factory automation and building management. The Impact-E 100 comes
with a 3 year warranty, giving peace of mind of 'fit and forget' in all
your embedded applications. More ...

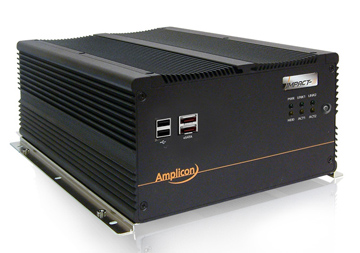

 The
very successful range of Impact computer systems has been further
improved to include units powered by the Intel® iCore technology; and are
the latest units to utilize the processing power of Sandy Bridge
processors and provide PCIe z.0 expansion in x16, x4, and x1 bus speeds.
The new Impact
series uses the Intel® H61 chipset to incorporate SATA III bus speeds of
up to 6 Gigabits/sec to optimize the overall system performance.
The Impact
range is designed to bridge the gap between consumer and industrial
systems while incorporating rugged chassis with high-end power supplies
and peripherals, combined with the latest in desktop computing technology
and a 3-year warranty. More ...
|
|

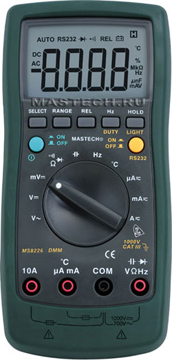

New Handheld Meter
|
|
 We've
added to our range of reliable digital multimeters from Precision Mastech - one of the world's largest DMM
manufacturers. The MS8226
is a precision general-purpose 3 3/4 digits (4000 count) digital
multimeter that can be used as a stand-alone instrument or as a low-cost
system for logging data to a PC host while opto-isolated from the host
computer. The MS8226
measures AC/DC voltage, AC/DC current, resistance, diode operation,
continuity, capacitance, frequency, duty cycle and temperature. Range may
be selected manually or automatically. All functions and ranges are
overload-protected. It is supplied with a thermocouple probe for temperature
measurements from -20 °C to +1000 °C. More...
|
|

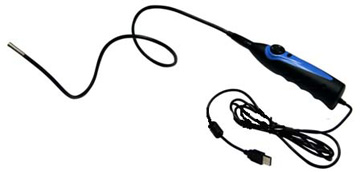

USB
Borescope (SB-IE98AT)
|
|
The SB-IE98AT Borescope
Inspection System is an economical user-friendly
device for solving hidden problems and increasing productivity. The
camera head is housed inside the tip of a flexible probe for
reaching into gaps, holes and high places and has built-in,
high-brightness white LED lights that are adjustable with a dial control
on the handle. This VGA-quality video inspection system produces clear
images, is easy to operate and extremely portable. It is auto-adjusting
for white balance and exposure. The video signal displayed is live-action
30fps, but a SNAPSHOT button freezes a photo image and sends it to the PC
via the 6' USB cable. The waterproof camera head is on the end of a
33" flexible tube for getting in tight corners and hard-to-reach
places. The Lightweight SB-IE98AT is
easy to maneuver with a comfortable, form-fitting handle. It is great for
applications such as equipment repair, construction and vehicle
maintenance - even inspect engine cylinder walls via the
spark-plug hole! Easy connection and power from the USB port on a
PC or laptop. More
...
|
PicoScope
Beta Release
|
Pico Technology started the year with a new beta release of
PicoScope: R6.7.12. This has the following new features for you to
try out:
- Signal generator triggers -- Start and stop the signal generator or AWG
manually or on an external signal. Generate a specified number of
cycles. Available on all current USB scopes with a signal generator/AWG
from PicoScope 2206 upwards, excluding PicoScope 4226 and 4227.
- I2S decoding -- Analyze serial data in digital audio circuits.
- Selective save -- Save specified waveforms from the waveform
buffer.
- Save
the visible portion of a zoomed waveform.
- Keyboard maps -- Save multiple sets of keyboard shortcuts. Load
standard or advanced default sets.
- Faster serial decoding -- Typical results: FlexRay 8x faster, CANbus 3x
faster, SPI 2x faster, I2C 2.8x faster, UART 10% faster.
|
|
DesignCon iPad + Scope Give-away
|
Our friends over
at EMA Design Automation will be exhibiting at DesignCon, the definitive event for the chip, board,
and systems design community. So we partnered with them to create the
perfect giveaway for the show - one lucky designer will win an Oscium iMSO-104 5MHz Oscilloscope for the iPad, and
just to make sure they can use it, an iPad 2 as well! That's about $700
worth of mixed signal exploration and Angry Birds gaming action.
While visiting the
EMA booth, you can also check out the new Cadence® OrCAD® 16.6 design tools. EMA will have
several experts there providing live demonstrations of these industry
leading products. Additionally, they will be showing their popular static
timing analysis tool, TimingDesigner™, which is set for a new release next
month.
If you want a chance to win this sweet prize, visit EMA at
booth 214 and enter the drawing. Good Luck!
|
|
Cleverscope Video and Free
Software Release
|
|
Cleverscope
has posted new feature videos and a tutorial on measuring Gain Phase for their CS328A-XS high-definition mixed-signal 14-bit
Oscilloscope. There is also a new version of their software available to download which adds new features to all Cleverscopes
- from the very first Cleverscope ever sold to the latest. "Looks like
you've been making the world's most comprehensive USB scope even more
comprehensive." - quote
from a user! More ...
|
|
Give-away
|
|
This month we invite your entry to win a USB Rover 2650 dual port self-
powered 50-meter extender pair. Send your entry with your
thoughts about Saelig - or a project you've worked on using Saelig
products by February 7, 2013 to feedback.
You may be this month's lucky winner!
|
|
|
Dunkin Donuts!
|
|
 Would
your friends and co-workers benefit from our news? Please consider taking
a moment to forward this email! Remember - Saelig always
offers FREE
shipping for on-line orders over $250. And ask for a FREE Dunkin
Donuts card with your order of $50 or more. More ...
|
Alan Lowne
Saelig Company, President
|
|
|
|
