From the Desk of Alan Lowne,
CEO
|
|
 Dear
Colleague,
Thank you for taking the
time out of your busy day to read our Saelig email. I promise to try to
make each one valuable to you!
Here in the Northeast USA we have had frigid temperatures and quite an
accumulation of snow; so we are eager for spring to arrive!
I hope you took notice of our special offer in February - we sent out a
mid-month email notifying our customers about a large batch of Owon
oscilloscopes that we had specially obtained so we could offer a huge
bargain exclusively to our readers. We sold the entire inventory in
a single day and had to repeat the offer two days later! I'm curious to
find out if you heard about it and where first - Our Facebook page? Our
Tweets? My blog? Or the special email?
Below are more items that
I hope you find beneficial!
Sincerely,
Saelig
Company, Inc.
CEO
|
|
|
|
|
|

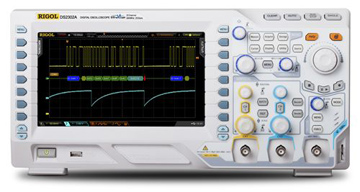

New
Rigol Oscilloscope Line Available from Saelig!
|
|
 In
addition to the hugely popular 1000-Z range of oscilloscopes, Rigol has
authorized Saelig to market their new 2000A series. The DS2000A Series
digital oscilloscope is another best-in-class instrument offering an
unmatched feature/value package. The DS2000A is a fast and versatile
scope covering frequencies up to 300 MHz with two channels and a wide
vertical range (500uV/div-10V/div) to deliver an extremely low noise
floor to help you capture smaller signals. With a 2 GSa/s sample rate
and 14 Mpts of standard memory, a user-friendly interface and a
beautiful 8" WVGA display, this is a scope that outperforms the
competition in a wide range of bench-top and field applications - and
at a 35% cost saving over the equivalent models from the two market
leaders! More...
|

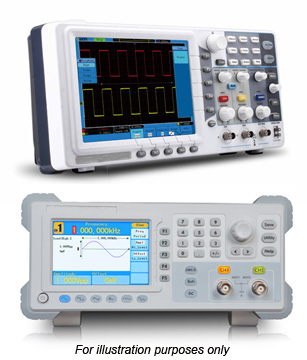

New! Test Equipment Bundle Combinations
|
|
This month we updated our test bundle offerings.
We now have pull-down menus to allow you to choose which
oscilloscope/signal generator pair suits your needs best, saving you
money when purchased together. Choose from trusted manufacturers such
as Rigol, Owon, GW Instek and others. More ...
|
|
|
|

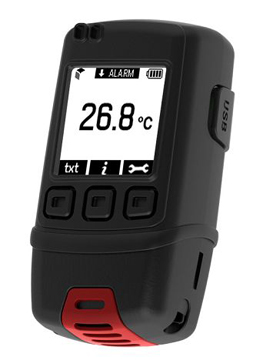

Lascar's new EasyLog
GFX dataloggers are now on our website, offering USB
ambient data logging with real-time data analysis and display. With
built-in dot-matrix displays, the EL-GFX range provides users with
more real-time information on the data being recorded than any
comparable data logger range on the market. The range includes a
temperature data logger, a temperature and humidity data logger, and a
dual-channel thermocouple data logger. Glycol probes are also available
to provide a buffered response to changes in temperature. More...
|
|
|
|

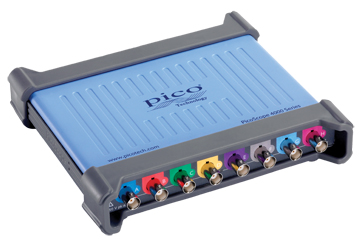

New Compact 8-Ch
USB3.0 Oscilloscope
|
|
The new PicoScope
4824 is an 8-channel
12-bit resolution PC scope adapter with a SuperSpeed USB 3.0 interface
and an integrated 14-bit
arbitrary waveform generator. This new
multi-channel scope has the same small footprint as previous two- and
four-channel models, and can replace cumbersome full-sized workbench
scopes. Like all PicoScopes, the 4824 is small, light, and highly
portable. Despite its high specification, it is entirely powered
via USB and does not require a bulky separate adapter. With a maximum
sampling rate of 80MSa/s, a deep buffer memory of 256MSa and data
streaming capabilities, this scope can perform detailed, useful signal
capture over prolonged periods. More...
|
WiFi-connected
Data Loggers
|
|
Lascar has WiFi-connected
data loggers for situations where you need to log a site-wide
environment. Temperature (WiFi-TP),
temperature/humidity (WiFi-TH),
and external temperature probe (WiFi-TC)
versions are also available, with built-in LCD readout. More ...
|
|
Easy
Frequency Response Analysis With CleverScope
|
|
Now you can use the Cleverscope CS328A-FRA to quickly measure the impedance and phase
of feedback networks, transformers, PCB power planes, capacitors,
resistors and inductors - without needing any major setting up. The FRA
Control Panel software makes it easy to set up everything in one place -
you do not need to know how to use the rest of the Cleverscope system -
and you can also measure capacitance, inductance, effective series
resistance, dissipation factor and the quality factor of
components!

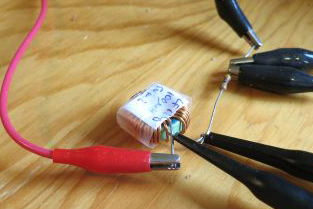

 Here
is a typical setup for testing an inductor. Using the FRA control panel
you can fully evaluate a transformer's transfer response, the primary and
secondary inductances, the leakage inductance and inter-winding
capacitance, all over frequency. Using DC offset you can check saturation
and DC sensitivity. You don't need to buy an expensive network analyzer
because the Cleverscope FRA does all this for you over a 0-65MHz*
frequency range!

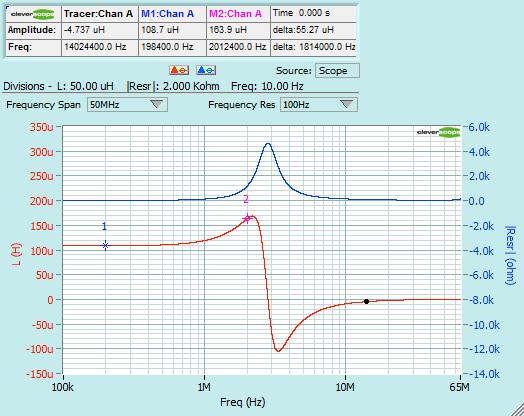

And here is the inductance - effective series resistance
plot for the inductor shown above.
|

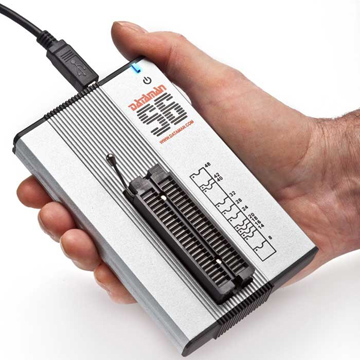

Dataman S6 now supports 14,000
devices!
|
 A
new database has just been posted on Dataman's website for their Dataman S6 Programmer.
This USB-powered universal 48-pin chip programmer with compact
dimensions and minimal weight can program without the need for a
family-specific module, giving you the freedom to choose the optimal
device for your design. The S6 is built to meet the demands of
development labs and field engineers for universal programming. More...
|

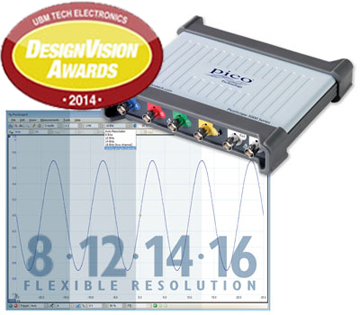

Flexible Resolution Oscilloscopes win
DesignVision Award!
|
 The
PicoScope 5000
Series of
Flexible Resolution Oscilloscopes recently won the
coveted DesignVision 2014 award for Test and Measurement Equipment at the
DesignCon 2014 show. The award was presented by UBM Tech Electronics,
publisher EDN, EE Times and Planet Analog.
The PicoScope 5000 Series scopes are the only oscilloscopes to provide
selectable hardware resolution from 8 to 16 bits in a single device while
maintaining low noise and distortion. They achieve this by using a novel
digitizer architecture in which multiple high-resolution ADCs are
sequenced in a variety of series and parallel combinations. This great
performance, combined with the advanced features of the PicoScope 6
software, means that the PicoScope 5000 Series is the only
general-purpose oscilloscope that you need on your workbench. With 2 and
4 channel models, a maximum sampling rate of 1 GSa/s, 60 to 200 MHz
bandwidth options, arbitrary waveform generator, up to 512 MSa buffer
memory, advanced triggers including pulse width, dropout, window, runt
pulse, logic and delayed, math channels, spectrum analyzer, serial
decoding of SPI, I2C, I2S, UART/RS-232, CAN, LIN, FlexRay - the feature
list goes on and on! More ...
|
|
Oscilloscope Evaluation Article
|
|
 Are
you in the market for a new oscilloscope? We have a great selection of
devices for sale, but which should you choose? It's clear that
"scope bandwidth" and "sample rate" are two important
parameters, but are there other things hidden in the specification sheets
you should take a look at? Check out Circuit Cellar's articles by
Colin O'Flynn on "Evaluating
Oscilloscopes" (Part 1) (Part 2) (Part 3)
|
|
Keeping Obsolete
Equipment Running
|
 This
month, COTS
Journal published an article I wrote on keeping obsolete equipment
running.
|
|
|
|
 "Now
that I am aware what great folks you are, I'll be doing business with you
any time I need additional equipment or more toys." Dr. M.M.
"A note about your advertising... I think you are spot-on with your
advertising in trade magazines and Circuit Cellar. The main reason I read
trade magazines are for ads such as yours - the trade mags are great for
letting the rest of us know who is doing what." J.A.
|
|
|
|
Our warehouse has
some items that need to be moved in order to make way for new stock.
Check out our website for some real bargains at 70% off list price!
These prices are valid for stock on hand only. Please call or
write to confirm quantities.
|
Item
|
Description
|
Reg.
|
Sale!
|
|
|
Wireless Temp/Humidity Recorder
|
$336.35
|
$99.97
|
|
|
Expansion Board for Embedded Master TFT display
|
$149.95
|
$44.85
|
|
|
50MHz USB pen-style Frequency/Period Counter
|
$199.50
|
$59.85
|
|
|
20MHz Handheld Scopemeter
|
$735.00
|
$220.50
|
|
|
5-in-1 25MHz Handheld Scopemeter
|
$417.91
|
$125.37
|
|
|
Programmable Universal 5 MHz Handheld Scope
|
$399.00
|
$119.70
|
|
|
ADC-11/12 (Parallel Port version)
|
$149.00
|
$44.70
|
|
|
|
$19.00
|
$5.70
|
|
|
Bluetooth Module with UART connection
|
$69.00
|
$20.70
|
|
|
|
$149.95
|
$44.98
|
|
|
Bluetooth RS232 Mini Adapter
|
$99.00
|
$29.70
|
|
|
Application Kit for WIZ-iRadio
|
$145.00
|
$43.50
|
|
|
Application Kit for WIZ-iStorage
|
$238.00
|
$71.40
|
|
|
USBizi™ development system for Microsoft's .NET Micro
Framework
|
$98.45
|
$29.53
|
|
|
|
|
