Economical 2.1GHz/3.2GHz RF Signal Generators
|
|
 Touch, PC, or web
control makes these versatile RF signal sources a valuable addition
to an engineer's test bench
Siglent SSG3000X
RF Signal Generators have a frequency range of 9kHz
to 2.1GHz or 3.2GHz. They provide all of the common signal
generation needs such as sweep control and analog modulations (AM,
FM, PM) as well as pulse modulation and pulse train generation
(option). Additionally, the IQE models can be used with a baseband
generator such as the Siglent SDG6000X to generate IQ modulated
signals. With a 0.01Hz frequency setting resolution, the
signal output can be adjusted from -110dBm to +13dBm with phase
noise as low as -110dBc/Hz @ 1GHz.
|
|
Radiated Power Measurements Without An Anechoic
Chamber
|
|
 Compact RF
measurement system is optimized for quickly measuring device
radiation patterns in a lab environment.
The compact MegiQ
RMS-0640/0660 Radiation Measurement Systems are
turnkey setups that can measure antenna and equipment radiation
patterns  and Total Radiated
Power (TRP) of an RF device from 600MHz to
4/6GHz. The RMS-06x0 system consists of a measurement
antenna, a measurement receiver with optional signal generator, a
motorized turntable, and application software for system control
and calculations. This system removes the need for an
expensive anechoic chamber for most applications. Moderate
lab space is all that is needed in order to obtain accurate 3-axis
radiation patterns and TRP calculations. Extensive testing
and comparison with anechoic test lab measurements has shown that
the measurement accuracy of the RMS-06x0 approximates very well to
anechoic measurements.
|
|
|
Economical Teledyne Test Tools (T3) Range of Test
Equipment
|
|
 A new range of
oscilloscopes, signal generators, power supplies, DMMs and spectrum
analyzers is now available in the Teledyne LeCroy brand
Teledyne LeCroy has launched new line of economical product
offerings called
Teledyne Test Tools (T3), a branded portfolio that
adds a broad range of laboratory test equipment. T3 products
complement and leverage Teledyne LeCroy's decades-long leadership
in oscilloscope technology, supported by the extensive Teledyne
LeCroy Sales and Customer Care organizations. Included in the new
T3 range are 100-300MHz oscilloscopes, 5-120MHz signal
generators, 195W power supplies, 4½, 5½, 6½ digital
multimeters, and 9kHz - 2.1 / 3.2GHz spectrum analyzer.
|
|
Improved Isolated High Voltage 4-Ch 200MHz
Oscilloscope
|
|
The CS448 is a unique isolated four-channel 200MHz
14-bit oscilloscope designed to measure high voltage, fast
slew-rate signals such as those in a full or three-phase power
electronic switching bridge. With new 300MHz 200x probes it can now
handle 1600V signals to cope with the latest SiC MOSFETs.
The Cleverscope CS448 is
a unique isolated high common-mode rejection ratio (CMRR)
four-channel 200MHz 14-bit oscilloscope. The CS448 has been
designed to measure high voltages - now up to 1600V - for fast
slew-rate signals such as those in a full or three-phase power
electronics switching bridge. Examples of challenging measurement
tasks the CS448 can handle easily are: voltage and charge of gate
drives, loss and parasitic stress in power switching, power and
spectrum of output signals for EMC compliance, control system
signals for gain/phase and stability, etc. The CS448 includes
an isolated 65MHz signal generator to provide stimulus signals for
frequency response analysis, and eight isolated 100Mb/s logic
inputs to simultaneously measure control signals. Two CS448's can
be connected to make an eight channel isolated oscilloscope with
coherent sampling.
|
|
Professional Multimeter With Built-in Infrared
Camera
|
Compact, lightweight DMM tool incorporates infrared
camera for accurate thermal fault investigations.
The HT
Mercury Digital Multimeter is a true RMS
DMM capable of  measuring AC/DC voltage up
to 1000V, AC/DCcurrent up to 10A as well
as resistance, continuity test, diode test, frequency,
capacitance and temperature with K-type probe. The built-in
infrared camera with 80x80 pixel resolution can
obtain simultaneous readings of thermal as well as electrical
values for an item under test. The thermal camera helps to
simply and quickly detect hot spots caused by electrical problems,
shorts, or malfunctions. The infrared sensor can detect a
temperature range from -20°C to 260°C with 0.1°C sensitivity.
Other major functions in the HT Mercury include an
"AC+DC" mode to accommodate DC components
on AC signals, and a variety of current measurement
ranges with standard and flexible transducer clamps. The F3000U
30/300/3000A clamp is provided with HT Mercury.
|
|
|
USB 3.0 SuperSpeed Isolator For Electrical Isolation
of USB Ports
|
|
 USB 3.0 SuperSpeed
Isolator eliminating ground loops and ground potential differences
and is ideal for measurement, industrial, automotive and audio
technology applications.
The ALLDAQ
ADQ-USB 3.0-ISO series of USB 3.0 isolators, which
support the full USB 3.0 SuperSpeed data rate of 5Gbit/s. This
allows USB 3.0 SuperSpeed devices to be electrically isolated from
a host PC or other peripherals at full performance. The re-clocking
design guarantees a stable USB connection at all speeds. The
ADQ-USB isolators can be used for the electrical isolation of USB
measurement instruments to avoid ground loops to solve problems in
industrial and automotive applications as well as in professional
sound studios and event and show equipment. The ADQ-USB 3.0-ISO
isolators automatically detect SuperSpeed (5Gbit/s), High-Speed
(480Mbit/s), Full-Speed (12Mbit/s) or Low-Speed (1.5 Mbit/s)
connections. The model ADQ-USB 3.0-ISO-PS includes a +5 V
power adapter with a lockable 5.5mm barrel connector (bayonet lock)
for a safety. For industrial and automotive applications, the
ADQ-USB 3.0-ISO-W version can accept 10 to 36 VDC from an external
power source via a 2-pin lockable Phoenix-type connector to power
devices with up to 900 mA. The external power input is protected
against reverse polarity and short-circuits.
|
|
|
Economical 200/350MHz Oscilloscopes
|
|
 Sampling at 2GSa/s
with standard record length of 28Mpts/channel, the SDS2000X-E's impressive
waveform capture rate is up to 400,000 frames/sec and it supports
multiple powerful triggering modes.
SIGLENTannounces the new economical, high performance SDS2000X-E
Series Super Phosphor Oscilloscopes that are available in 200MHz
and 350MHz bandwidths at only $619 / $839. They feature a maximum
sampling rate of 2GSa/s and a standard record length of 28Mpts/ch
(interleaved mode). With an impressive waveform capture rate of up
to 400,000 frames/sec (sequence mode) Siglent's newest oscilloscope
series supports multiple powerful triggering modes that includes
built-in serial bus triggering and decoding (I2C, SPI, UART, CAN,
LIN).
|
|
|
Flicker Spectrometer Quantifies Light Flicker
Measurements
|
|
 The GL Spectis 1.0
Touch Flicker Spectrometer is ideal for categorizing flicker
in luminaire design and test, in addition to full CIE photometric
and radiometric parameter calculation, LED Binning, Pass/Fail
testing, remote control and data transfer.
The GL
Spectis 1.0 Touch Flicker  Spectrometer, is an upgraded version of the very successful
handheld Spectis 1.0 Touch Spectral Light Meter. This device
can now measure the increasingly important parameter of light
flicker in addition to the extensive range of standard photometric
and colorimetric values already available. The Spectis 1.0
Touch Flicker Spectrometer is now equipped with additional
electronics and a fast photodiode to measure flicker frequency,
flicker index, and flicker ratio. Designed and developed in
consultation with industry leaders and standards committees, this
device provides all the measurement quantities required to
accurately measure and understand flicker.
|
|
|

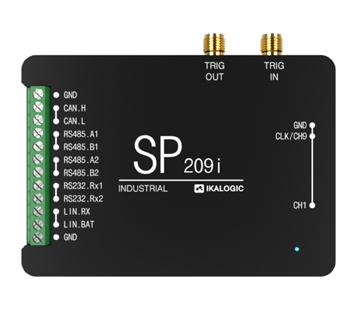

Innovative IKALOGIC SP2 Logic Analyzers
|
|
Ultra-compact, portable debug tool offers large
databuffer, built-in bus receivers for serial decoding.
The IKALOGIC
SP2 Series of compact 9-channel 200MHz Logic
Analyzers, which offer in-depth analysis of logic signals and
protocol decoding with 200MHz (5ns) timing resolution. The
nine channel design allows 8-bit parallel data to be captured along
with a clock or strobe signal at the maximum sampling rate without
any trade-off between the number of active channels and the
sampling rate. The embedded 2Gb memory buffers the captured signals
before sending to the attached PC. Powerful trigger options
include: edge trigger, logic change on one or various channels,
trigger on timed logic signals sequence, trigger on protocol word
or event (e.g. serial word or I2C address acknowledge), external
trigger input, etc. The SP2 series makes it easy to analyze CMOS
logic signals and industrial buses. The series consists of two
devices: the SP209 is the standard edition and
the SP209i is an industrial version with specialized
receivers for most common industrial busses like RS485, RS232 or
CAN. The Trigger-in and Trigger-out SMA connectors allow
users to synchronize the SP209 to other lab equipment, building
highly sophisticated test setups. The Spartan 6 FPGA design
provides the processing power required and can easily be
firmware-updated.
|
|
|
Compact USB 6GHz RF Vector Signal Generator
|
|
 Pocketable signal
source provides RF test signals with features comparable to
full-size analog GHz signal generators and can operate standalone.
The Triarchy
Technologies' VSG6G1C RF Vector Signal
Generator is a cost-effective pocketable USB-connected RF
signal source with capabilities that provide standalone and
PC-controlled functions comparable to full-size analog RF signal
generators. Offering frequencies from 1MHz to 6.1GHz with frequency
sweep, frequency hopping using I&Q modulation, and arbitrary
signal generation. This compact signal source can generate most of
the modulated signals that RF engineers might need. The VSG6G1C's
many test functions can be customized to meet the needs of
proprietary and other nonstandard wireless protocols. This compact
design is ideal for field test situations since it can be
conveniently added to a field service kit, and configured to
operate standalone without any connected PC - just a 5V USB source
or battery pack. The VSG6G1C RF Vector Signal Generator can
also operate in ATE systems as a signal source module, simulating
many different RF systems for test purposes.
|
|
|
ABI Ultimate Software Version
3.30
|
|
 ABI has just released version 3.30 of the Ultimate
software which brings exciting new features and enhancements to its
PCB Test Equipment. If you own a BoardMaster,
RevEng
or a product from the SYSTEM
8Range currently running Ultimate, it is time to upgrade to
version 3.30.
The best of all is that as
an ABI customer, you get to upgrade your software for FREE,
gratis, 无偿地!
What to do next?
1. Watch
this quick video explaining how the new universal,
multi-lingual installer works on the link below
ABI Ultimate
Software Youtube Link
2. Click
here to register and download Ultimate 3.30. You will
need to provide
the product's serial number in the
registration form.
3. Wait
for the password to arrive from ABI.
4. Enjoy
using Ultimate 3.30!
Did you know ABI continues to be the only test
& measurement manufacturer to provide retro-compatible software
upgrades to customers without charge.
The complete modification list for the new version is
available here
|
|
|
Sensor Technologies' TorqueSense product helps the
EV market!
|
|
 Electric vehicles from @saiettagroup &
@sensortech are getting revved up for launch! The company's latest
innovation is the 'S-AC' which is an ultra-efficient brushless
axial-flux AC motor. Click
here for story
|
|
|
Dave @eevblog tears down the
Siglent SSA3000X Spectrum Analyzer
|
|
Click
to see eevblog video
|
|
|
Attention Pharmaceutical Manufacturers!
|
|
 Thailand's pharma company GPO acquires ABI's
electronic troubleshooting equipment BoardMaster to aid the
company's internal repair and obsolescence support
strategies.
Click
for more ABI BoardMaster Information
|
|
|
|
