New
Economical Two-channel 10-bit
100MS/s Analog PC Scope Adapter and
8-channel Logic Analyzer with Built-in Sweep Generator.
New
Economical Two-channel 10-bit
100MS/s Analog PC Scope Adapter and
8-channel Logic Analyzer with Built-in Sweep Generator.
Pittsford, NY. Cleverscope™ CS328 is a new USB-connected all-in-one PC-based mixed signal oscilloscope adapter which brings benefits unavailable from traditional stand-alone oscilloscopes and is even more sophisticated than other PC scope-adapters. This innovative tool delivers an unbeatable combination of affordability, ease of use and documentation of test results with "Copy and Paste" simplicity. You can display real-time analog, math-modified waveforms as well as digital signals simultaneously, using the built-in signal generator as your swept-frequency source, and easily transfer results into other applications such as Word, Excel, etc.
Cleverscope™ CS328 features two 10-bit self-calibrating A/D channels, sampling at 100 Megasamples/second simultaneously. Gain and offset automatically adjust for instantly viewable results for inputs from 20mV to 800V full scale. The external trigger is adjustable from 0 to ±20V in 40 mV increments. A huge 4 Megasample buffer allows you to drill down and display detailed information from the very long data buffer. 8 digital inputs are also available, sampling simultaneously at 100 Megasamples/second.
Cleverscope™ CS328 offers highly flexible mixed-signal triggering, scope and spectrum display – you can trigger from either analog channel or a combination of digital inputs. Useful offset capabilities allow you to see small ac signals on a large ac or dc offset.
The software’s built-in math capability - accessed by just typing in an equation - allows Cleverscope™ CS328 users to display multiple modified waveforms: add or subtract channels, square root, integral, differential, filtering, etc. Users find that the easy-to-use software interface is “light-years in front of other offerings” and math functions like these are only available on expensive standalone scopes!
An
optional plug-in signal/sweep generator CS700 provides useful test
signals: sine, square: 0.2Hz–10MHz; triangle: 0.2Hz – 1MHz;
with
frequency and/or phase shift and sweep capabilities, this is ideal for measuring
filter responses or audio amplifier testing!
Cleverscope CS328 PC scope adapter
is available now from stock from Saelig Co. Inc. Pittsford NY.
Available
with optional built-in CS700 signal/sweep generator.

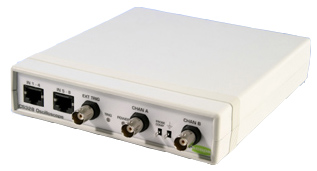

Hi-Res Image: https://www.saelig.com/images/cs328.jpg
