: March 23, 2010
   Alan Lowne, President, Saelig Co. Inc.
         Tel: (585) 385-1750 Email:

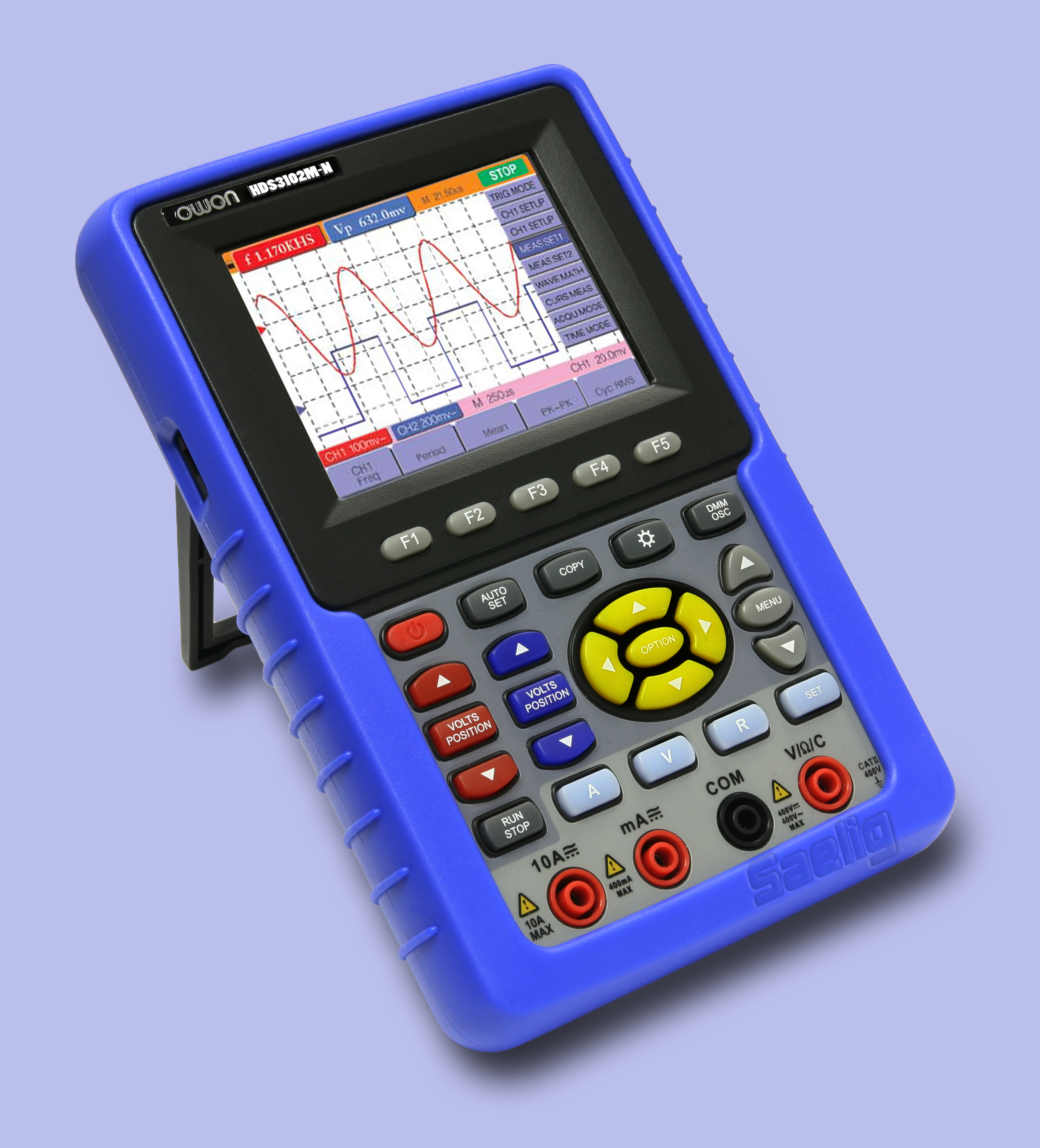

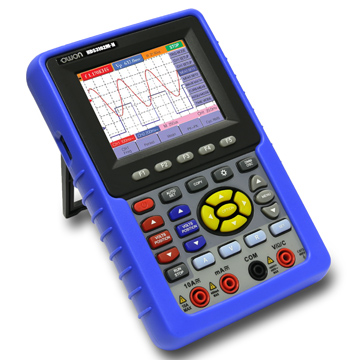

Saelig Debuts 100MHz Handheld Oscilloscope

Pittsford, NY, USA:  Saelig Company, Inc. announces the availability of HDS3102MN - a new, rugged 100MHz two-channel handheld oscilloscope and 3¾ digit multimeter with FFT spectrum display capability, perfect for any engineer’s toolkit.  A USB connection makes storing or printing the displayed waveforms easy too. HDS3102MN features a rugged impact resistant casing, easy-to-use controls, and a high-brightness 640×480 LCD display. Battery life is an exceptional 6 hours.

User-friendly silica gel keys offer shortcuts for simplified operation of this sophisticated portable scope, which features advanced functions such as: advanced stable scope triggering in Free Run, Single shot, Edge, and Video modes, Digital Persistence to observe slow-moving signals (1 sec, 2 sec, and 5 sec, infinite), averaging to reduce noise. The Auto-Set feature lets the Oscilloscope display and measure signals automatically, optimizing the position, range, time base, and triggering to assure a stable display of virtually any waveform.  Waveform math functions include: +, -, ×, ÷, Invert, and FFT. The sophisticated FFT feature provides four window function choices for optimum signal frequency display to 100MHz (Rectangular/Hamming/Hanning/Blackman-Harris).    Twenty types of measurements can be made completely automatically (Vpp, Vavg, RMS, Frequency ,Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Preshoot, Risetime, Falltime, +Width, -Width, +Duty, -Duty,  Delay A→B rising, Delay A→B falling).

True RMS multimeter measurements include: Volts, Amps, Ohms, Continuity, Resistance, Capacitance, Diode, with separate inputs for multimeter and oscilloscope signals. Sampling at 500 MSa/s, HDS3102MN offers. HDS3102MN is powered by an internal 6 hour capacity rechargeable, replaceable Li-ion battery. The 3.8”, 65535 colors TFT color LCD makes waveforms or meter reading clear even in daylight. HDS3102MN also provides a useful 1KHz/5V square-wave test signal. Onboard storage is provided for up to 4 waveforms, and a USB port allows storage of waveforms too.

Weighing under 2 lbs, the 7” x 4.5” x 1 6” HDS3102MN is supplied in a rugged metal carrying case, and comes with a generous array of standard accessories:  two  x1/x10 passive oscilloscope probes, a pair of multimeter test leads, USB connection cable, 110V charging adapter, user manual and CD.
