Saelig Introduces Programmable Active 30MHz to 5GHz RF Mixer / RF Signal Generator
MixNV is an innovative low-cost
software-programmable RF mixer and signal source

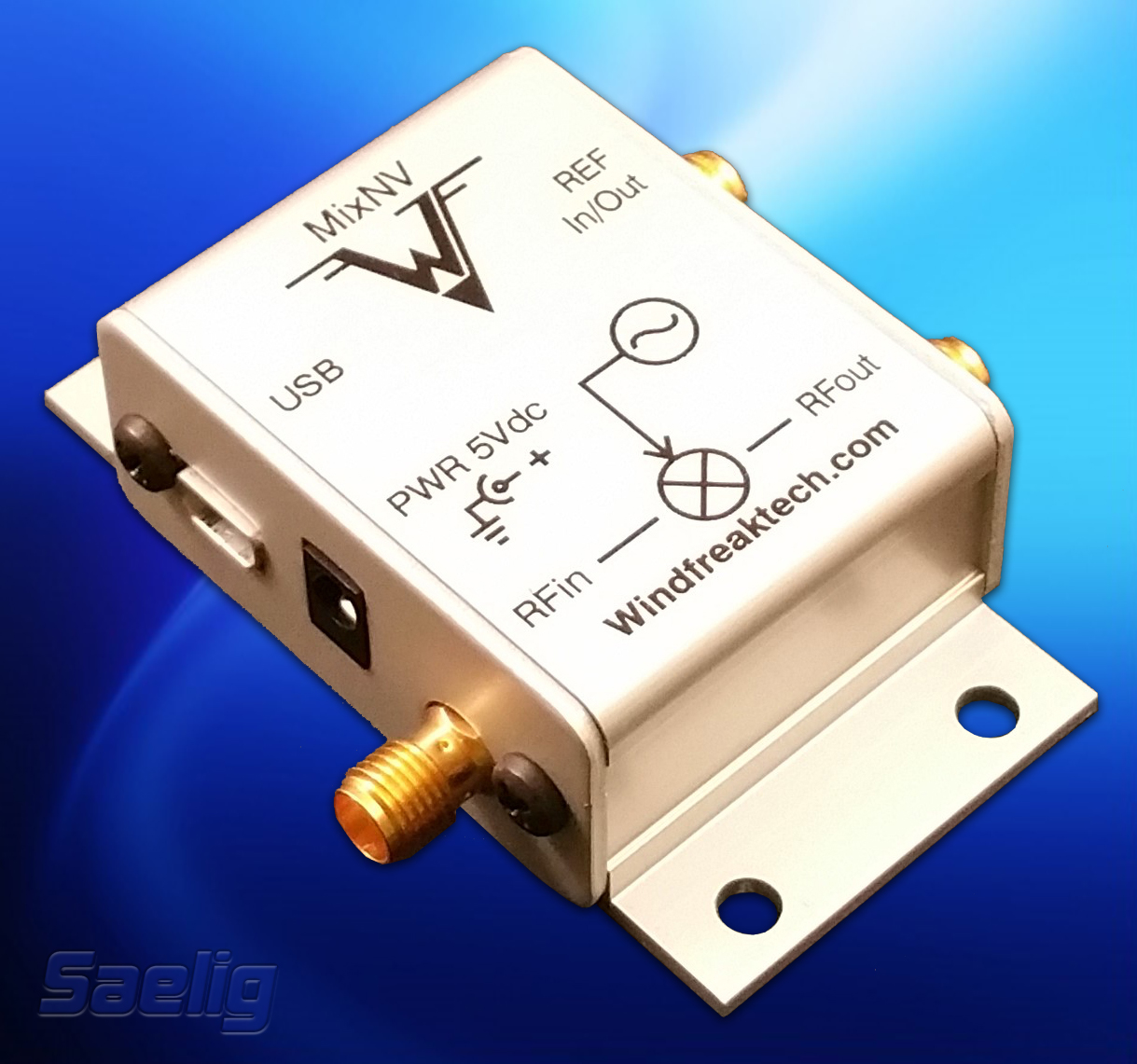

Fairport, NY, USA:  Saelig Company, Inc. announces the new Windfreak MixNV - an economical 30MHz to 5GHz software-programmable RF mixer which can up-convert or down-convert.  It features a built in Local Oscillator (LO) that is controlled and powered by a PC running Windows XP, Windows 7 or 8 via its USB port.  The RF I/O ports can accommodate RF signals in the 30MHz to 5GHz range, but the built-in local oscillator can be adjusted from 85MHz to 5GHz in 1Hz steps using an advanced sigma-delta modulator phase-lock loop. This provides very low fractional spurious products and excellent phase noise. The MixNV also features on-board nonvolatile memory so it can be programmed to wake on power-up to any preset oscillator frequency, FSK modulation, or a variety of other settings.

The MixNV is designed as a stand-alone mixer for use in RF and microwave communications products or test setups and has the ability to self-bias the mixer so that it can be used as a signal generator with very fine frequency resolution. It also has the ability to perform two-level FSK (Frequency Shift Keyed) modulation with finely adjustable frequency deviation via software or off-board external 3.3V CMOS drive.  The MixNV is very easy to control using the supplied software or other third-party serial communication software.

The compact (2.5" x 1.375" x 0.75") MixNV is a highly mobile, low power and lightweight solution for a variety of RF frequency conversion needs.  Applications include: wireless communications systems, RF and microwave radios, software defined radio (SDR), radar, automated test equipment (ATE), EMC-radiated immunity pre-compliance testing, scalar network analysis (SNA),  local oscillator replacement, quantum device research, plasma physics, education, etc.

Designed and manufactured in USA by Windfreak Technologies, a designer of low cost, innovative RF products that are in use worldwide in a variety of technical applications, the MixNV is available now from Saelig Company, Inc. Fairport, NY.
