New Product Press Release
For Release May 28, 2009

New Multi-channel Dataloggers
Operate in Real-time, Streaming, and 1MSa/s Block Modes

Pittsford, NY.  Saelig Company announces additions to its data acquisition products with two value-priced multi-channel, USB-powered data loggers. With up to 12-bit resolution and up to 1 MS/s sample rate, PicoLog 1216 and PicoLog 1012 multi-channel voltage data loggers offer terrific value in terms of resolution, sample rate and number of inputs. In addition, the units offer up to 4 software-configurable digital output lines and 1 PWM control output.  The units also offer a current-limited sensor excitation output.  All this is in a compact, portable unit that simply plugs into the USB port of a standard Windows-based PC, without any need for an external power supply to the unit.

Designed to meet the needs of a wide range of general-purpose voltage, sensor and transducer logging applications, PicoLog 1216 and PicoLog 1012 feature independent software-configurable channels, ranges, scaling and control outputs, an external terminal board to facilitate connections and custom front-end circuitry, and a choice of 10 or 12-bit input resolution. PicoLog 1216 and PicoLog 1012 voltage data loggers contain everything needed for immediate use and free PicoLog comprehensive data logging software includes an SDK for customized programming.

Both loggers feature 3 sampling modes to meet most data logging needs: real-time continuous, streaming and block mode. Streaming mode allows channel voltage readings to be logged continuously at 1 kS/s on any number of channels, while real-time continuous mode provides averaged, time-accurate readings with automatic measurements available in PicoLog. Block mode captures at the full 1 MS/s sample rate of the logger for the duration of the 8k sample buffer.

Features:

PicoLog 1216	PicoLog 1012
16 unipolar analog inputs	12 unipolar analog inputs
12-bit resolution	10-bit resolution
4 configurable digital outputs	2 configurable digital outputs
1 PWM control output

Shared Features

• Up to 1 MS/s sample rate

• USB connected and powered

• Current-limited sensor excitation output

• Windows XP and Vista (32 and 64-bit) compatible

• Includes API and examples for C/C++/C#, VB, LabVIEW VIs

• Includes terminal board and ready-to-go data logging

Made by Pico Technology, Europe's award-winning oscilloscope and datalogger manufacturer, PicoLog1216/1012 Data Loggers are available from Saelig Company, Inc.

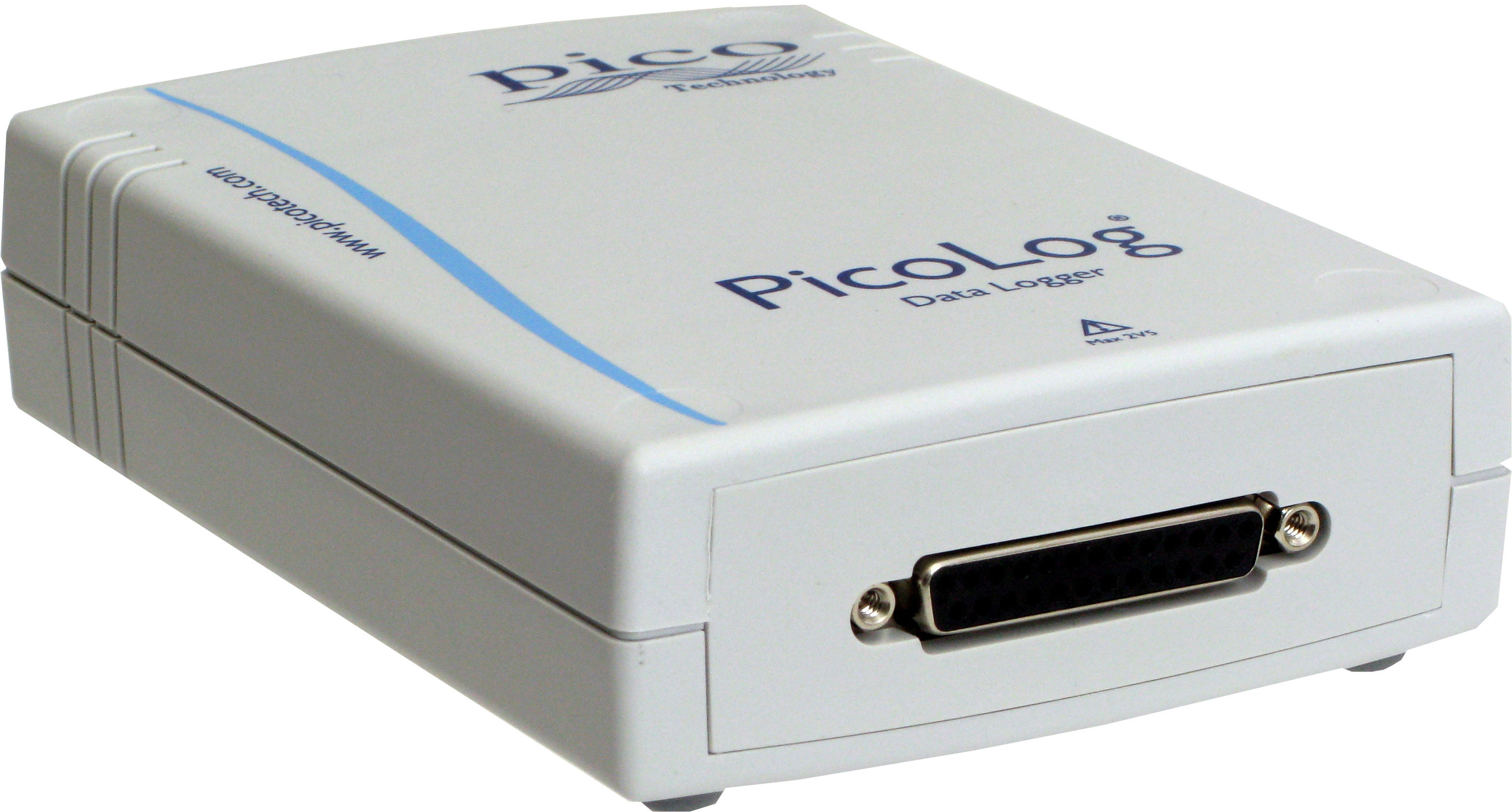

Hi Res Image
