New Economical 4 ½ Digit Benchtop Multimeter From Saelig



Fairport, NY, USA:  Saelig Company, Inc. (www.saelig.com) has introduced the Siglent SDM3045X - a 4½ digit dual-display digital multimeter that is suited to high-precision, multifunction, and automation measurement applications. It features a combination of basic measurement functions, with multiple math and display choices, and special features including histogram, trend chart, bar chart, statistics, hold measurement, dBm, etc.

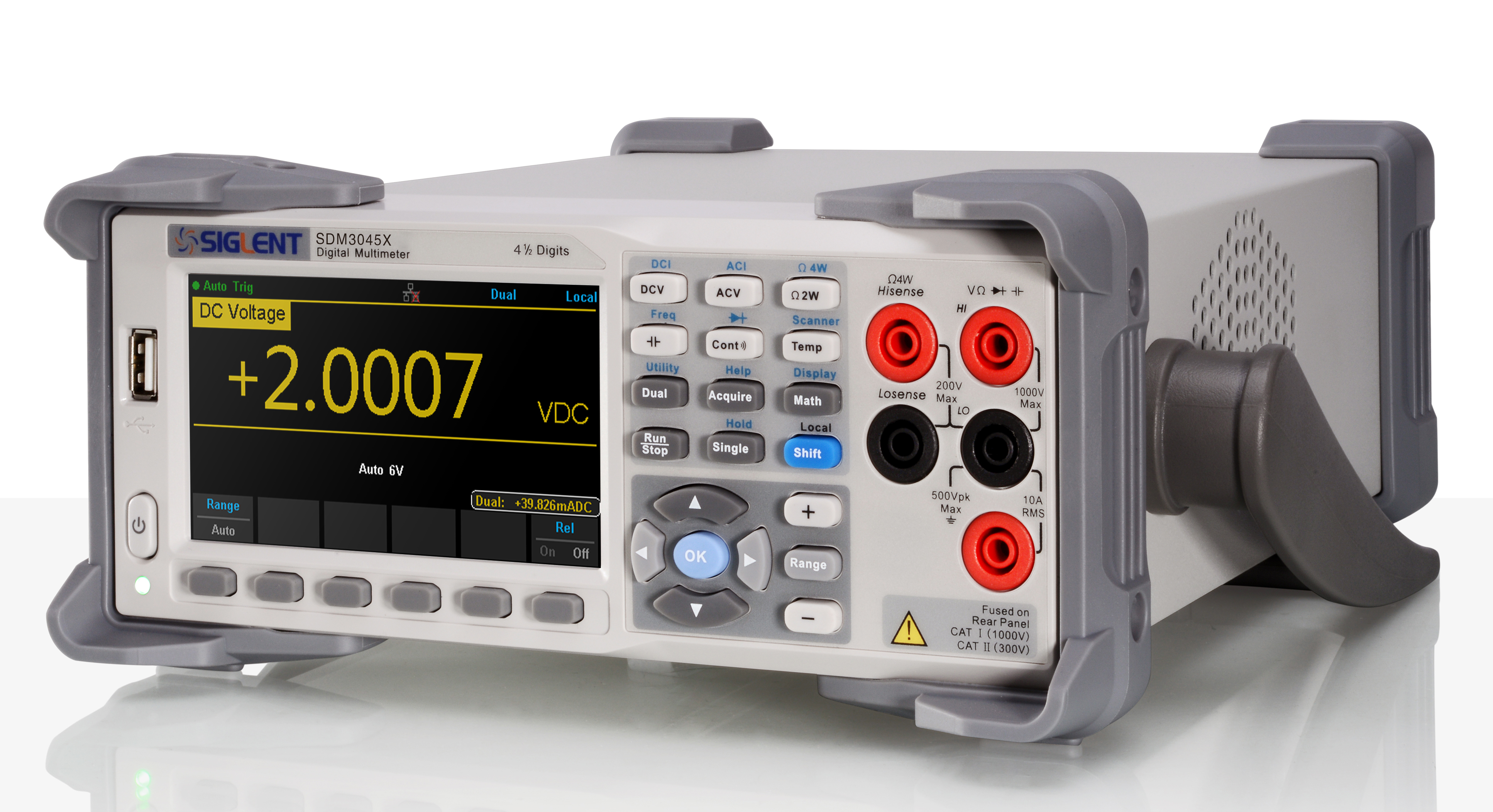

The SDM3045X multimeter’s front panel features a 4.3” (480 x 272) high resolution color TFT-LCD display that clearly shows the 60000 count readings. This DMM’s clear keyboard layout and operation make it easy and quick to use.  Its many interfaces for remote communication and storage include USB Device, USB Host and LAN, and the Ethernet connection interface supports the common SCPI command set.

Reading at up to 150 readings/second, the SDM3045X DMM will make measurements of True-RMS AC Voltage and AC Current, Resistance to 100 megohms, Capacitance to 10,000 microfarads, Continuity and Diode tests, frequency and period measurements, and temperature, with support for thermocouple and RTD sensors.  It contains 1 GB of Flash memory for storage of configuration and data files, and also supports USB external storage.  Siglent's EasySDM software, provided free, allows for easy PC connectivity, external control and display.  Housed in an attractive compact (11.6” × 10.3” × 4.3”) prop-stand case, the SDM3045X weighs only 8.3lbs.

The Siglent SDM3045X’s combination of comprehensive features, ease of use and versatile functionality make this multimeter a perfect general purpose measuring tool. Applications include research and development, education, circuit testing and debug, automated production testing, etc.  Housed in an attractive, rugged 11” x 9" x 4" case with built-in prop stand.  The SDM3045X is available from Saelig Company, Inc.
