Saelig Introduces Economical Programmable 128W Power Supply With 1mV/1mA Precision
The SPD1168X supply is an economical, s
table, reliable, power source with low ripple and noise (≤ 350 uV RMS/3mVpp; < 2 mA RMS) and fast transient response time (< 50 μs).

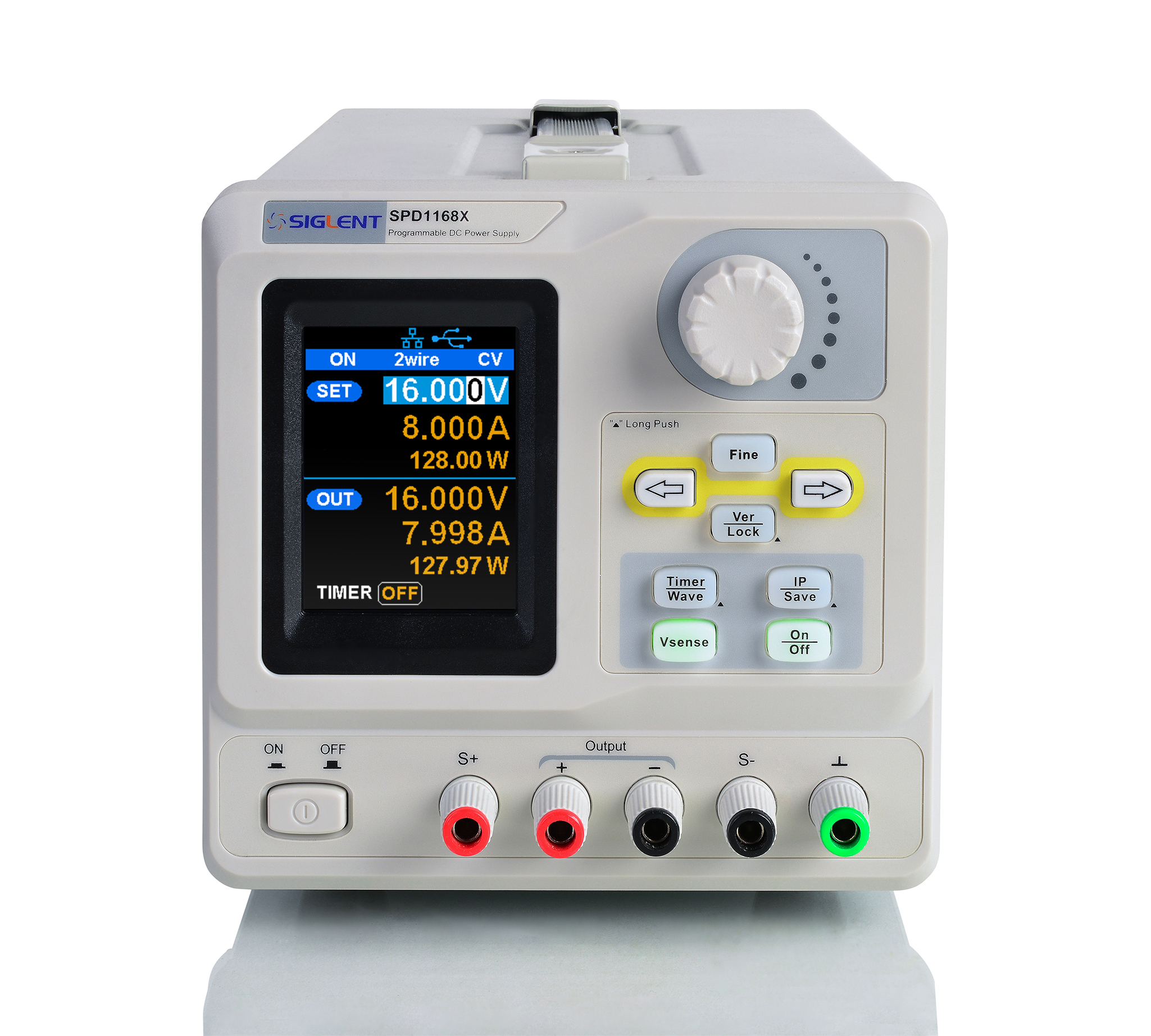

Fairport, NY, USA:  Saelig Company, Inc. has introduced the Siglent SPD1168X Programmable Linear DC Power Supply - a single-channel 16V high performance power source with a 2.8” TFT-LCD display that also includes remote computer control capability and real-time waveform display. The SPD1168X features a high precision programmable output capable of delivering up to 16V at 8A (128W) with a remarkable minimum resolution of 1mV/1mA.  The SPD1168X power source design features low ripple and noise (≤ 350uV RMS/3mVpp; < 2mA RMS) and fast transient response time (< 50us).

The SPD1168X also includes a 4-wire sense function for accurate voltage sourcing, especially with long lead situations or high resistance connections. The display provides 5-digit voltage and 4-digit current indication, a waveform display function, and timer features.   Additional output short and overload protection ensures safety for education, production, and development applications.

The SPD1168X Programmable Linear DC Power Supply offers two output modes: 2-wire output mode, and 4-wire compensation output mode.  The advanced design also includes an intelligent temperature-controlled fan to minimize noise.  Five groups of system parameters can be saved and recalled.  Easypower PC software is included, which allows PC control of the power supply and supports SCPI and LabView.
