Tiny Webserver With A/D Input, Digital Output

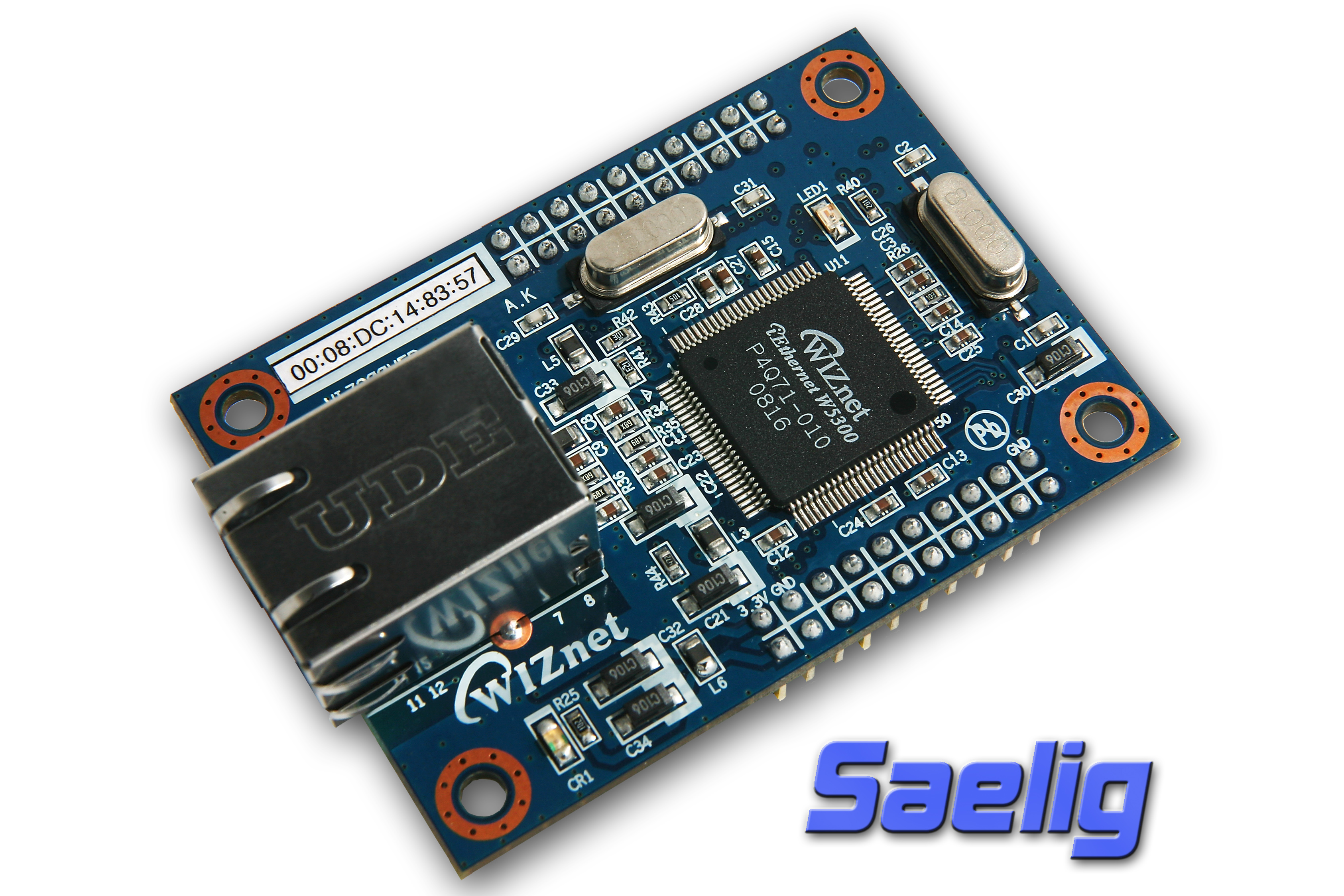

Pittsford, NY: WIZ200WEB is a tiny (2.4” x 1.65”) embedded web server featuring an Atmel ATmega128 MCU, which can control a digital output or monitor a digital or analog input via a web browser. The HTTP server webpage is stored in on-board serial flash memory, and can be easily updated through a network connection.
Operating on 3.3V or 5V, WIZ200WEB consumes only 170mA, and features 4 status LEDs. The RJ45 connector provides an autosensing 10/100 Mbps hook-up, and with 0.1”-spaced interconnection pins this makes an instant-use module for your next design challenge. On-board memory of 128K Flash, 4K SRAM, 4K EEPROM, leaves plenty of room for all your web server needs. Ethernet protocol is handled completely by WIZnet’s W5300 hardwired TCP/IP IC, so no overflows or other instability problems can occur. W5300's fully hardwired TCP/IP algorithm guarantees line speed with on-the-fly processing architecture that is independent of the main processor. It also eliminates a main processor’s overhead by offloading network tasks, thus enhancing overall system performance.
Connecting a browser to the IP address of the board shows the flash–memory-stored webpage data, enabling control of digital input & output, and access to an analog input or a built-in temperature measurement. An RS232 serial port is also provided, allowing Ethernet-serial conversion too. Local LCD output capability is also easily achieved.
Applications for WIZ200WEB’s LAN and Internet-browser-based interface include any product that needs remote access or control, such as: security systems; heating, cooling and refrigeration equipment; IT systems monitoring; access or equipment monitoring & control; factory machinery and processes; vending machines; domestic appliances; water treatment plants; medical equipment; environmental monitoring; remote on/off switching of electric motors, pumps, lighting, etc. 17
WIZ200WEB is available now from WIZnet's USA distributor Saelig Company.
