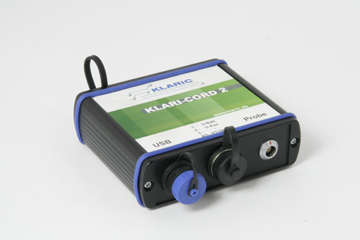

KLARI-CORD2 Automotive Voltage/Current Logger

Please note that all Klaric products are custom ordered due to the large number of probe variations. Probes are sold separately.Please contact a Saelig Technical Support representative for details.

DESCRIPTION

KLARI-CORD2 is the follow-up model of the approved KLARI-CORD modules, which are used for testing and recording power consumption and battery charge data in vehicles. The module is not only able to measure DC currents ranging from several milliamperes to several kiloamperes, it can at the same time measure voltages and temperatures precisely via an external sensor. All acquired measured values are stored on the integrated SD CARD and instantaneous values can also be output via the RS232 interface.KLARI-CORD2 has been optimized for long-duration measurements.

New features:
• Measured values can also be output online via CAN interface.
• USB interface for measurement configuration as well as for readout of measured values. SD card remains in the module.
• Individual application for the measurement task by various external measurement shunts with plug & play functionality.
• KLARI-CORD2 is suitable for automotive applications involving ambient temperatures ranging from -40 to +85°C.
• The shunts are suitable for ambient temperatures from -40 to +130°C.

A PC software tool supplied with the module can be used to store the required measuring configuration of the KLARI-CORD2 on the integrated SD CARD and to read out the acquired measured values from the SD CARD.The measured values can then be displayed and exported in various standard data formats. The optional KLARI-VIEWER software provides more possibilities for visualization - for details please ask for a software demonstration.The module's principal area of application is the measurement of battery charge data in vehicles in the field. It can, however, also be used to perform a wide variety of other general measurement tasks.

Variants:
KLARI-CORD2 modules are supplied in an IP65 metal housing (LxWxH) 85x110x35 mm. On the rear of the unit a USB mini plug is integrated. CAN, RS232 and power supply are fed out via a 15-contact Sub-D plug on the rear of the unit, CAN supply and external status LEDs can be plugged via a 5-contact DIN socket. The connections for voltages and temperature are fed out via the 5-contact DIN socket (180°, IP65) on the front of the unit. A 6-contact connector is used for connecting the measurement shunt to the module
