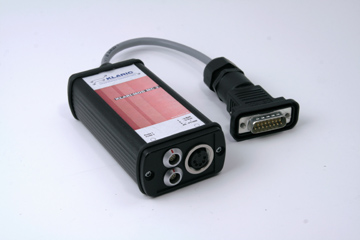

KLARI-MOD MC2 - 2-ch

KLARI-MOD MC2 - 2-ch

Manufacturer: Klaric

Price: $2,173.50

Specifications

Inputs / characteristics 2 galvanically isolated measuring channels wih ASIC each

Measuring range: depending on the connected probe, examples see table

Connecting possibilities:

MS3 measuring signal inputs for voltage and temperature measurement. All MS3 inputs have a common mass point.
Resolution ±15 Bit/measuring range


5 measuring ranges with selectable autorange function
Accuracy

±1% from measuring value ±3Bit per measuring range

Sample rate Each ASIC max. 4000 measuring values/sec., measurement period adjustable, continuous measurement with averaging over the measurement period
Additional functions Selectable data output (CAN and/or RS232)

CAN data export – parameter driven data output (Baud rate, identifier etc.)

ntegrated CAN termination, disengageable via software


Automatic probe identification

Calibration value of the probe is considered at measuring value processing
Outputs

Parameter driven CAN data output


Potential-free High-Speed-CAN with 1 MBaud

RS232 with 115 kBaud

Time basis

~30 µs resolution

Casing (LxWxH) Metal casing: 100x60x35 mm
Power supply 6,0…50 V DC
Current consumption

Approx 150 mA at 12 V DC

Configuration

via PC and RS232. Configurations can be set, created, managed and loaded into the measurement module.
Operating modes Multichannel mode with:

Autorange function for all channels over all measuring ranges

Difference mode and limit mode for minimizing the data rate with adjustable Δ and limit values

Adjustable measurement periods per measuring channel

Adjustable averaging for all measuring channels for minimizing the data volume
Temperature range -40…+85°C for the measuring module

-40…+130°C for the shunt
Insulating voltage 80 V DC
Protection class IP65

Datasheet
