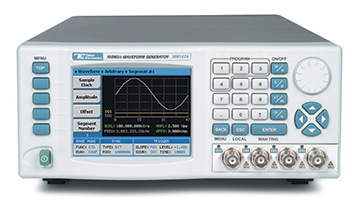

WW1074-1 25MHz 4-Ch Arbitrary Waveform Generator 2M Memory

The Model 1074, is a four-channel universal waveform synthesizer. It is built in a small case size to save space and cost but without compromising bandwidth and signal integrity. The instrument outputs either standard or user-defined waveforms in the range of 100 mHz to 50 MHz. 16-bit DAC`s are used for building waveforms with excellent accuracy and resolution which are suitable for the finest test signals that are needed for today`s sensitive instruments. Using the latest technology, you can be assured that the features and capabilities of the Model 1074 will be useful for many years.

• Four-channel 100 MS/s waveform generator
• Sine and Square waves generated to 50MHz
• 16 Bit amplitude resolution
•  2Mpts waveform memory
• 10 Separate sequences link and loop segments in user-definable order
• Four separate SYNC outputs for independent channel synchronization
• 10 Vpp into 50Ω, double into open circuit
• Multiple run modes including trigger, re-trigger and trigger delay
• (n)PSK and (n)QAM modulation
• High resolution 3.8” LCD, color display
• Ethernet, USB and GPIB interfaces
• Multi-Instrument synchronization
• ArbConnection software for easy waveform creation & control
