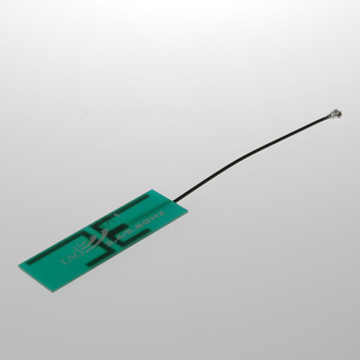

Rhea 2.4/5.6 GHz Internal Antenna (FRHE35121-UF-10)

2.4/5.8 GHz internal antenna, groundplane independent, with 100mm cable and U.FL


Features

• 2.4/5.8 GHz
• Internal Mount
• 1 dBi Gain
• Mount using tape
• Groundplane Independent
• Ideal for mobile and fixed terminals

Specifications

• Antenna Type: Half Wave
• Center Frequency: 2400, 5800 Mhz
• Connector: UFL
• External: N
• Impedance: 50 Ohm
• Peak Gain: 2 dBi
• Polarization: Linear
• Power Rating: 10 mW

Datasheet
