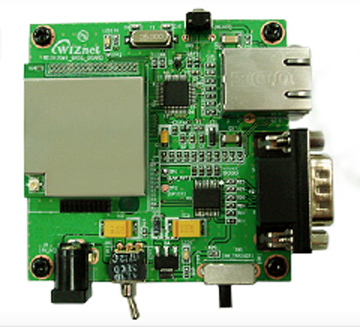

WIZ610Wi-EVB Ethernet to Wireless Bridge Eval Kit
Manufacturer: Wiznet
This product is discontinued. Please view the WizFi630-EVB for a possible replacement.
While supplies last.
Kit includes WIZ610Wi module
Features
- Stand-alone typed 802.11b/g wireless LAN module
- Ethernet to Wireless Bridging : Enable wired network device to have wireless communication interface
- Supports Serial Interface for "Serial to Wireless" application
- Supports AP/Station/Gateway mode
- 54Mbps data rate and Max.20Mbps Effective Data Transmission
- Full-Featured Network Protocol Stack
- Built-in Web server for configuration via standard web browser
PRODUCT UPDATE:
WIZ610wi, WIZnet's 802.11b/g wireless module has been upgraded to reduce its booting speed to a mere 17 seconds. To apply this improved function, you need to upgrade the boot-loader of the WIZ610wi. Downloads
Specifications
|
Wireless Specifications
|
| Wireless Standards |
IEEE 802.11b; 802.11g |
| Frequency Range |
2.412GHz ~ 2.462GHz (US & Canada) |
| 2.412GHz ~ 2.472GHz (Europe) |
| 2.412GHz ~ 2.484GHz (Japan) |
| Output Power |
14dBm@802.11b(1~11Mbps)
14dBm@802.11g(1~54Mbps)
|
| Receive Sensitivity |
802.11b -65dBm@11Mbps
802.11g -76dBm@54Mbps |
Data Rates With
Automatic Fallback |
54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps,
12Mbps, 9Mbps, 6Mbps, automatically fallback to
5.5Mbps, 2Mbps, 1Mbps |
| 11Mbps, 5.5Mbps, 2Mbps, 1Mbps |
| Range |
Up to 200m/2dBi antenna gain |
| Modulation Techniques |
OFDM, CCK |
|
Serial Interface
|
| Interface |
UART
CMOS (Asynchronous) 3.3V-level signals,
rate is software selectable
|
| Serial Line Formats |
7 or 8 data bits, 1-2 Stop bits |
| Parity |
odd, even, none |
| Flow Control |
XON/XOFF (software), CTS/RTS (hardware), none |
|
Network Interface
|
| Interface |
MII, Wireless 802.11b, 802.11g |
| Protocols Supported |
TCP, Telnet, DHCP, HTTP, SMTP, TFTP |
|
Management
|
|
HTTP / Telnet
|
|
Security
|
|
WEP 64/128bit, WPA/WPA2 PSK/AES/TKIP, 802.1x(Radius)
|
|
Power Consumption
|
| Average Consumption |
3.3V summary(W)
10Mbps HD(Traffic) 0.27A 0.42
100Mbps HD(Traffic) 0.119A 0.39 |
|
Environmental
|
| Operating range,WLAN |
0~55°C |
| Storage range |
-20~ 77°C |
WiZ610wi User Manual
|
